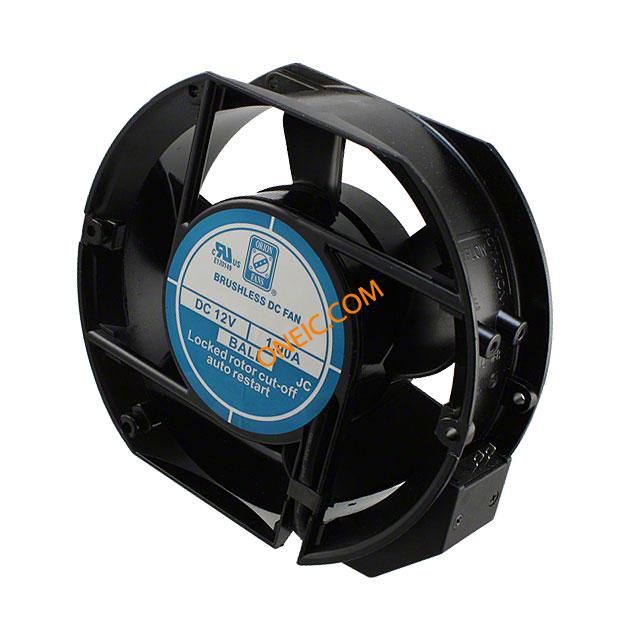

OD172SAP-12HTB
| 制造商 | Orion Fans |
| 描述 | Fans 172x150x51MM 12VDC Terminal Leads FAN 12VDC TERM 172X150X50.8MM Fans Fan DC 172x51mm 12V 260CFM Ball Term |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 52 dB | 转速 | 3700 RPM |
| 电压范围 | 8 ~ 14VDC | 额定电压 | 12VDC |
| 供电电压 | 12 V | 最大额定电流 | 1.9A |
机械参数
| RPM | 3200 RPM | 风量 | 230.0 CFM (6.51m³/min) |
| 风扇类型 | Tubeaxial | 端接方式 | 2 Terminals |
| 轴承类型 | Ball | 静压 | 0.750 in H2O (186.8 Pa) |
| 壳体材料 | Aluminum | 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 框架材料 | Aluminum | 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W |
| 端接样式 | Terminals | ||
产品信息
| 系列 | OD172SAPL | 功能 | DC |
环境参数
| 额定寿命 | 40000 hrs @ 60°C | 工作温度 | -4 ~ 167°F (-20 ~ 75°C) |
