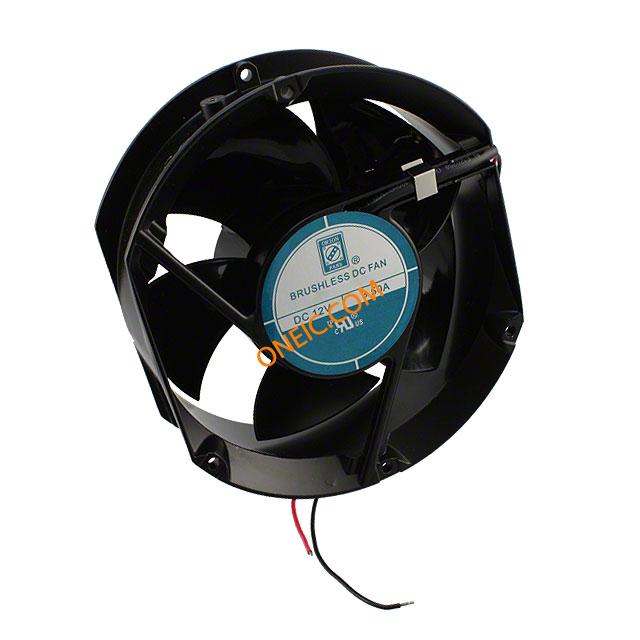

OD172SAP-12HBXC
| 制造商 | Orion Fans |
| 描述 | FAN 12VDC AXIAL 172X150X50.8MM Fans Fan 172x51 12VDC Ball Wire 277cfm DC Fan Ball Bearing 12V 3.5A 3900RPM 277CFM 62dB Flange Mount |
| 分类 |
商业参数
| 产品 | Fans | 标准包装规格 | 10 |
| 产品类别 | Fans | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 62 dB | 转速 | 3900 RPM |
| 电压范围 | 9 ~ 14VDC | 额定电压 | 12VDC |
| 供电电压 | 12 V | 最大额定电流 | 3.5A |
机械参数
| RPM | 3900 RPM | 风量 | 277.0 CFM (7.84m³/min) |
| 风扇类型 | Tubeaxial | 端接方式 | 2 Wire Leads |
| 轴承类型 | Ball | 静压 | 1.140 in H2O (284.0 Pa) |
| 壳体材料 | Aluminum | 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 框架材料 | Aluminum | 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W |
产品信息
| 系列 | OD172S XC | 功能 | DC |
环境参数
| 额定寿命 | 65000 hrs @ 45°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
