点击放大查看

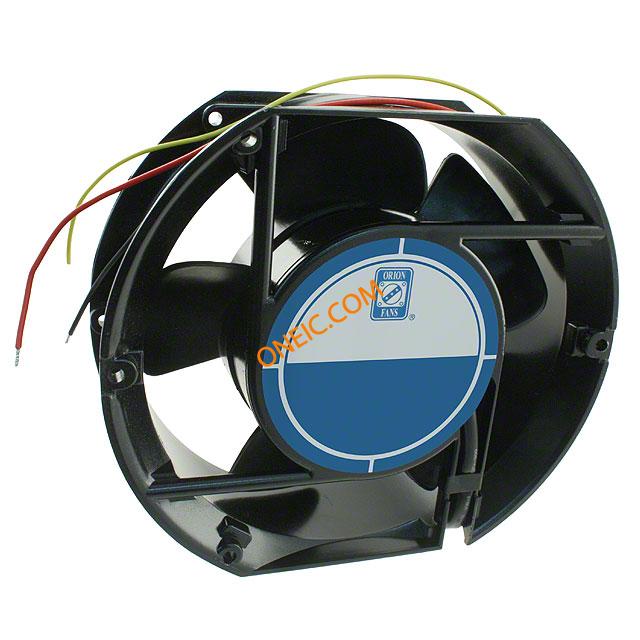

OD172SAP-12HB02A
| 制造商 | Orion Fans |
| 描述 | FAN DC ALARM 12V 172X150X50.8MM Fans Fan DC 172x150x51 Ball O/C Alarm Fan;DC;12V;172x150x51mm;Obround;230CFM;52dBA;3200RPM;2Ball;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 52 dB | 转速 | 3200 RPM |
| 电压范围 | 8 ~ 14VDC | 额定电压 | 12VDC |
| 供电电压 | 12 V | 最大额定电流 | 1.9A |
机械参数
| RPM | 3200 RPM | 尺寸 | 6.8x5.9x2(172x150x51)In.(mm) |
| 风量 | 230.0 CFM (6.51m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 3 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.750 in H2O (186.8 Pa) | 壳体材料 | Aluminum |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 6.8x5.9x2(172x150x51)In.(mm) |
| 总体尺寸 | 6.8x5.9x2In. | ||
产品信息
| 类型 | Axial Fans | 产品特性 | Locked Rotor Sensor |
| 功能 | DC | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | OD172SSeries |
| 配置 | Obround | ||
环境参数
| 额定寿命 | 40000 hrs @ 60°C | 工作温度 | -4 ~ 167°F (-20 ~ 75°C) |
| 自然散热热阻 | 230CFM | 结工作温度 | 75°C |
文档与媒体
相关型号
LFG172B
Orion Fans
Fan Cords & Accessories Plastic Louver Guard for Fan Size 172mm FAN GUARD LOUVERED 172MM BLACK Fan Accessories Louvered Fan Guard Kit for 172mm Fan Fan;Accessory;FilterKitfor172mmFan;Louvered;204x204mm;Black
G172-10HA
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 172mm FAN GUARD METAL 172MM Fan Guard; Steel (Wire); 6.77 in.; Electroplated Nickel Chrome; 162x154x6.5mm Fan Accessories Wire FanGuard Chrome for Fan Size 172mm Thrml Mgmt Access Finger Guard 172mm FanGuard;Steel(Wire);6.77in.;ElectroplatedNickelChrome;162x154x6.5mm
GRM172-45
Orion Fans
Fan Cords & Accessories Fan Filter 172mm 45 Pores Media Black FAN FILTER 172MM 45PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 45ppi;172mm Fan Accessories Fan Filter Kit 172mm 45 Pores Media Black Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam45ppi;172mm

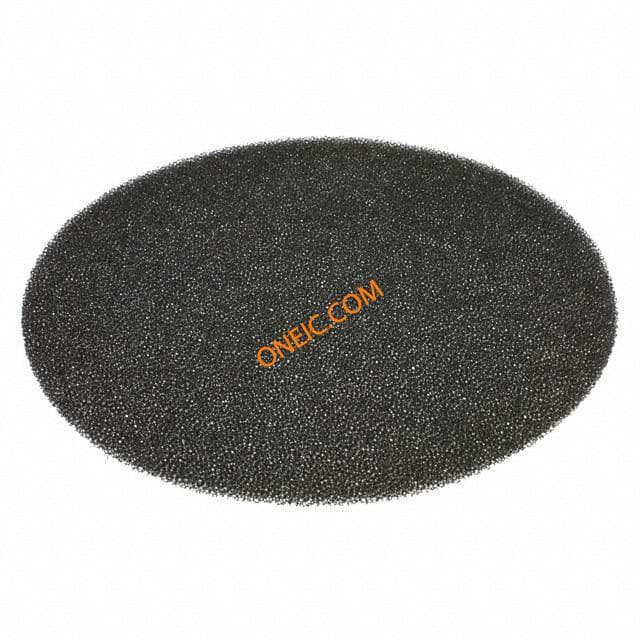

M172-45
