点击放大查看

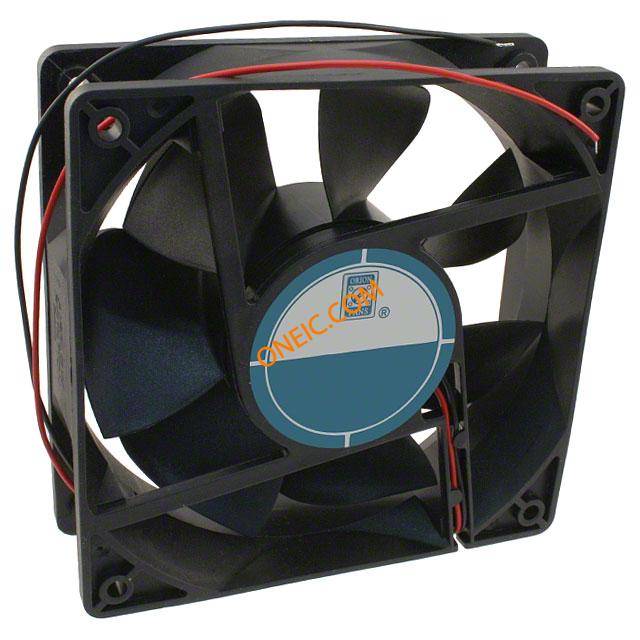

OD1238-12HHB
| 制造商 | Orion Fans |
| 描述 | FAN DC 120X38 12V 154CFM Fan;DC;12V;Extra High Speed;Ball Bearing;UL94V-0 Thermoplastic;120 x 38 mm Fans Fan 120x38 12VDC Ball LW 140cfm 47dB Fan;DC;12V;1.3A;120x120x38mm;Sq;154CFM;52dBA;3800RPM;Leadwires |
| 分类 |
商业参数
| 产品类别 | Fans | 标准包装数量 | 1 |
合规参数
| RoHS | Compliant | ||
电气参数
| 噪声 | 52 dB | 转速 | 3800RPM |
| 电压范围 | 6 ~ 14VDC | 额定电压 | 12VDC |
| 最大额定电流 | 1.3A | ||
机械参数
| RPM | 3800 RPM | 尺寸 | 4.7x1.5(120x38In.(mm) |
| 风量 | 154.0 CFM (4.36m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.570 in H2O (142.0 Pa) | 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 主要材料 | Fans |
| 尺寸/外形 | Square - 120mm L x 120mm H x 38mm W | 风扇附件类型 | 4.7x1.5(120x38In.(mm) |
| 总体尺寸 | 4.7x4.7x1.5In. | ||
产品信息
| 类型 | Square | 功能 | DC |
| 方向 | IntakeoverStruts | 开关类型 | DC |
| 制造商全称 | OD1238Series | 配置 | Square |
环境参数
| 额定寿命 | 65000 hrs @ 45°C | 工作温度 | -4 ~ 167°F (-20 ~ 75°C) |
| 自然散热热阻 | 154CFM | 结工作温度 | 75°C |
文档与媒体
相关型号
LFG120B
Orion Fans
Fan Cords & Accessories Plastic Louver Guard for Fan Size 120mm FAN GUARD LOUVERED 120MM BLACK Fan Accessories Louvered Fan Guard Kit for 120mm Fan Fan;Accessory;FilterKitfor120mmFan;Louvered;148.5x148.5mm;Black
GRM120-30
Orion Fans
Fan Cords & Accessories Fan Filter 120mm 30 Pores Media Black FAN FILTER 120MM 30PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 30ppi;120mm Fan Accessories Fan Filter Kit 120mm 30 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 120mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam30ppi;120mm
G109-3A
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 120mm FAN GUARD METAL 120MM Fan Guard; Steel (Wire); 4.72 in.; Electroplated Nickel Chrome/Black Anodized Fan Accessories Wire FanGuard Chrome for Fan Size 120mm FanGuard;Steel(Wire);4.72in.;ElectroplatedNickelChrome
G109-15AB
Orion Fans
Fan Cords & Accessories WireGuard for 120mm BlackFinish 1.8mmDia FAN GUARD METAL 120MM BLACK Fan Guard; Steel (Wire); 4.72 in.; Black Anodized Fan Accessories WireGuard for 120mm BlackFinish 1.8mmDia FanGuard;Steel(Wire);4.72in.;BlackAnodized
G120POG
Orion Fans
Fan Cords & Accessories Plastic PushOn Guard for Fan Size 120mm FAN GUARD PLASTIC 120MM PUSH ON Fan Accessories Plastic PushOn Guard for Fan Size 120mm
GRM120-45
Orion Fans
Fan Cords & Accessories Fan Filter 120mm 45 Pores Media Black FAN FILTER 120MM 45PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 45ppi;120mm Fan Accessories Fan Filter Kit 120mm 45 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 120mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam45ppi;120mm
WMG120M
Orion Fans
Fan Cords & Accessories Guard 120mm Mill Mesh Filter Media FAN GUARD 120MM WIRE MESH NATURL Mesh Guard; Wire Mesh; For 60mm; 80mm; 92mm; 120mm; and 172mm Fans; Filters Fan Accessories WireMeshGuard 120mm Mill Finish Filter Thrml Mgmt Access Fan Filter Screen 120mm Aluminum/Stainless Steel MeshGuard;WireMesh;For60mm,80mm,92mm,120mm,and172mmFans,Filters

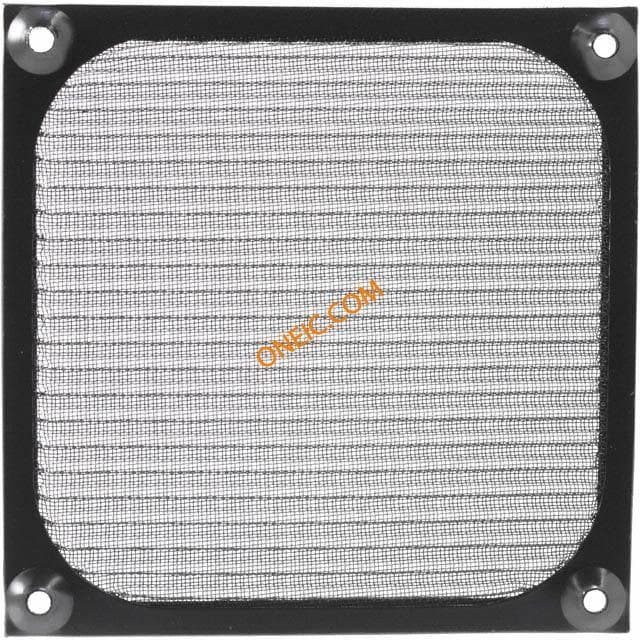

WMG120B
Orion Fans
Fan Cords & Accessories Guard 120mm Mesh Black FAN GUARD 120MM WIRE MESH BLACK Fan Accessories WireMeshGuard 120mm Black Finish
G109-15A
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 120mm FAN GUARD METAL 120MM Fan Guard; Steel (Wire); 4.72 in.; Electroplated Nickel Chrome Fan Accessories Wire FanGuard Chrome for Fan Size 120mm Thrml Mgmt Access Finger Guard 120mm FanGuard;Steel(Wire);4.72in.;ElectroplatedNickelChrome
G120P
Orion Fans
Fan Cords & Accessories Plastic Fan Guard for Fan Size 120mm FAN GUARD PLASTIC 120MM Fan;Finger Guard;Plastic;PBT;UL94V-0 Thermoplastic;120mm (4.7 in) Fan Accessories Plastic Fan Guard for Fan Size 120mm Thrml Mgmt Access Guard 120mm Fan,FingerGuard,Plastic,PBT,UL94V-0Thermoplastic,120mm(4.7in)

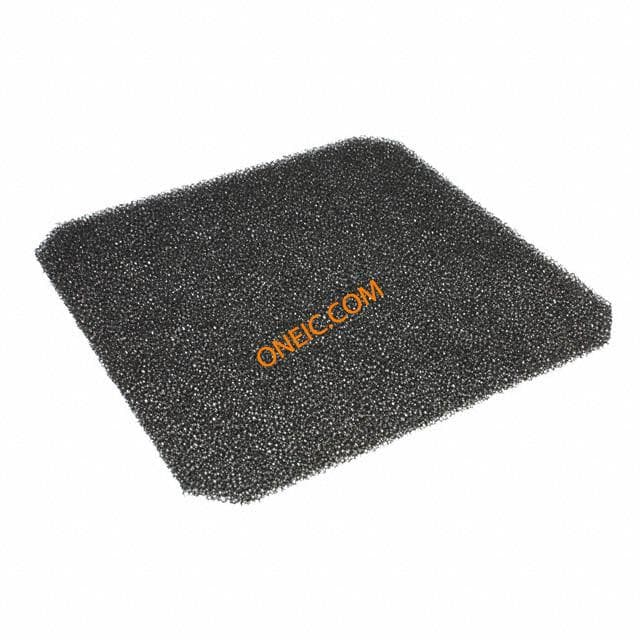

M120-45
Orion Fans
120MM FAN FILTER MEDIA 45PPM Fan Filter; Media; 45 PPI; 4.72 Fan Size FanFilter;Media;45PPI;4.72FanSize

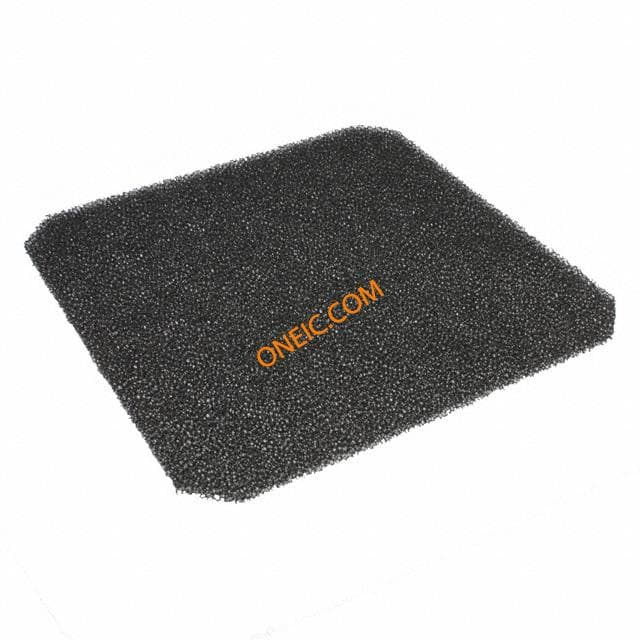

M120-30
