点击放大查看

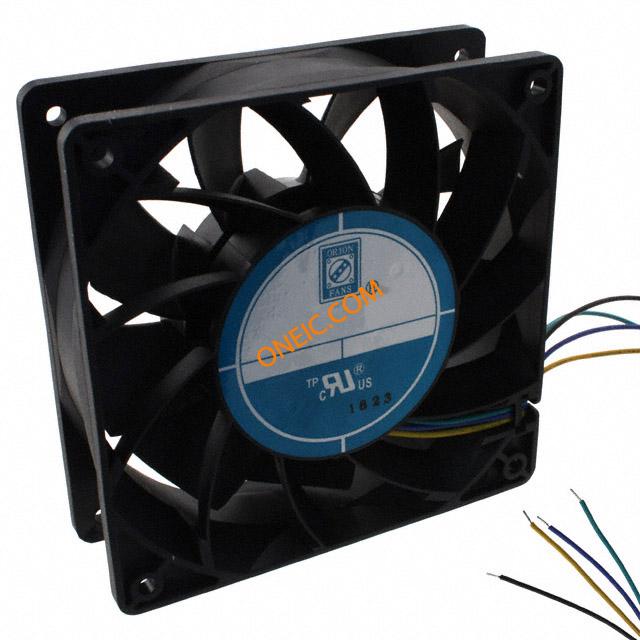

OD1238-12HBVXC10A
| 制造商 | Orion Fans |
| 描述 | 120X38 12V VANE 226CFM W/PWM-TAC Fans VnAxial 120x38 12VDC 226CFM PWM&Tach |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 65 dB | 转速 | 5000 RPM |
| 功率（瓦） | 6.00W | 电压范围 | 6 ~ 14VDC |
| 额定电压 | 12VDC | 供电电压 | 12 V |
| 最大额定电流 | 3.6A | ||
机械参数
| RPM | 5000 RPM | 风量 | 226.0 CFM (6.40m³/min) |
| 风扇类型 | Tubeaxial | 端接方式 | 4 Wire Leads |
| 轴承类型 | Ball | 静压 | 1.350 in H2O (336.3 Pa) |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 尺寸/外形 | Square - 120mm L x 120mm H x 38mm W |
| 端接样式 | Wire Leads | ||
产品信息
| 类型 | Axial Fans | 产品特性 | PWM Control; Speed Sensor (Tach) |
| 功能 | DC | ||
环境参数
| 额定寿命 | 65000 hrs @ 45°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
文档与媒体
相关型号
LFG120B
Orion Fans
Fan Cords & Accessories Plastic Louver Guard for Fan Size 120mm FAN GUARD LOUVERED 120MM BLACK Fan Accessories Louvered Fan Guard Kit for 120mm Fan Fan;Accessory;FilterKitfor120mmFan;Louvered;148.5x148.5mm;Black
GRM120-30
Orion Fans
Fan Cords & Accessories Fan Filter 120mm 30 Pores Media Black FAN FILTER 120MM 30PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 30ppi;120mm Fan Accessories Fan Filter Kit 120mm 30 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 120mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam30ppi;120mm
G109-3A
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 120mm FAN GUARD METAL 120MM Fan Guard; Steel (Wire); 4.72 in.; Electroplated Nickel Chrome/Black Anodized Fan Accessories Wire FanGuard Chrome for Fan Size 120mm FanGuard;Steel(Wire);4.72in.;ElectroplatedNickelChrome
G109-15AB
Orion Fans
Fan Cords & Accessories WireGuard for 120mm BlackFinish 1.8mmDia FAN GUARD METAL 120MM BLACK Fan Guard; Steel (Wire); 4.72 in.; Black Anodized Fan Accessories WireGuard for 120mm BlackFinish 1.8mmDia FanGuard;Steel(Wire);4.72in.;BlackAnodized
G120POG
Orion Fans
Fan Cords & Accessories Plastic PushOn Guard for Fan Size 120mm FAN GUARD PLASTIC 120MM PUSH ON Fan Accessories Plastic PushOn Guard for Fan Size 120mm
GRM120-45
Orion Fans
Fan Cords & Accessories Fan Filter 120mm 45 Pores Media Black FAN FILTER 120MM 45PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 45ppi;120mm Fan Accessories Fan Filter Kit 120mm 45 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 120mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam45ppi;120mm

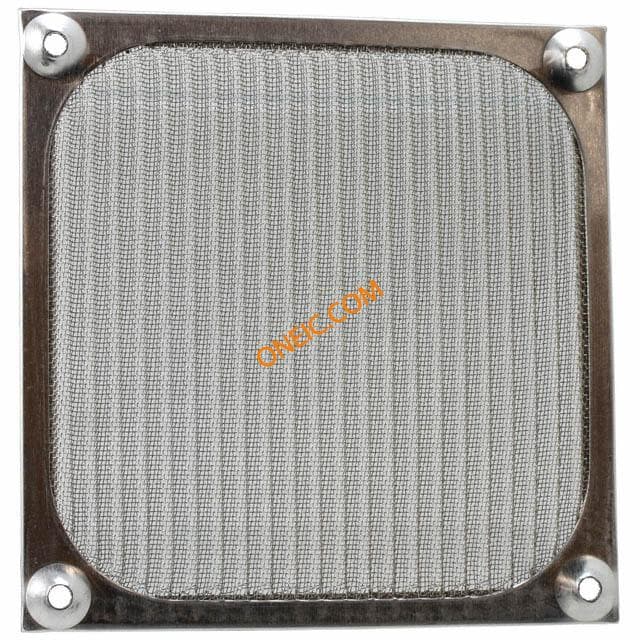

WMG120M
Orion Fans
Fan Cords & Accessories Guard 120mm Mill Mesh Filter Media FAN GUARD 120MM WIRE MESH NATURL Mesh Guard; Wire Mesh; For 60mm; 80mm; 92mm; 120mm; and 172mm Fans; Filters Fan Accessories WireMeshGuard 120mm Mill Finish Filter Thrml Mgmt Access Fan Filter Screen 120mm Aluminum/Stainless Steel MeshGuard;WireMesh;For60mm,80mm,92mm,120mm,and172mmFans,Filters

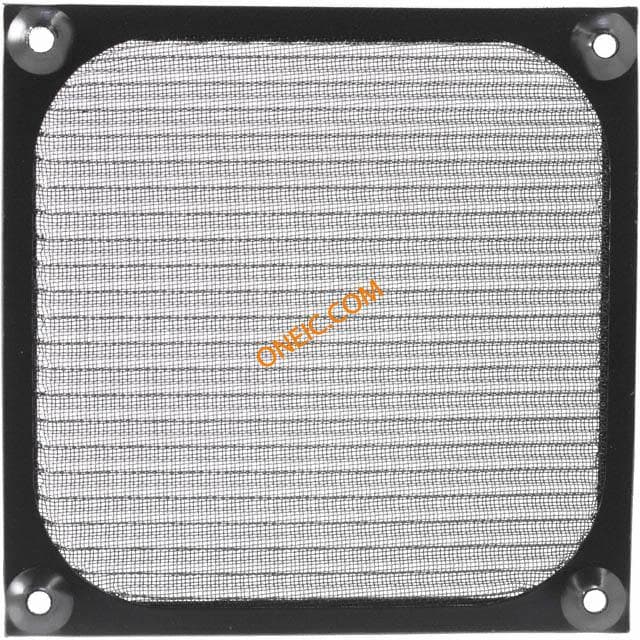

WMG120B
Orion Fans
Fan Cords & Accessories Guard 120mm Mesh Black FAN GUARD 120MM WIRE MESH BLACK Fan Accessories WireMeshGuard 120mm Black Finish
G109-15A
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 120mm FAN GUARD METAL 120MM Fan Guard; Steel (Wire); 4.72 in.; Electroplated Nickel Chrome Fan Accessories Wire FanGuard Chrome for Fan Size 120mm Thrml Mgmt Access Finger Guard 120mm FanGuard;Steel(Wire);4.72in.;ElectroplatedNickelChrome
G120P
Orion Fans
Fan Cords & Accessories Plastic Fan Guard for Fan Size 120mm FAN GUARD PLASTIC 120MM Fan;Finger Guard;Plastic;PBT;UL94V-0 Thermoplastic;120mm (4.7 in) Fan Accessories Plastic Fan Guard for Fan Size 120mm Thrml Mgmt Access Guard 120mm Fan,FingerGuard,Plastic,PBT,UL94V-0Thermoplastic,120mm(4.7in)

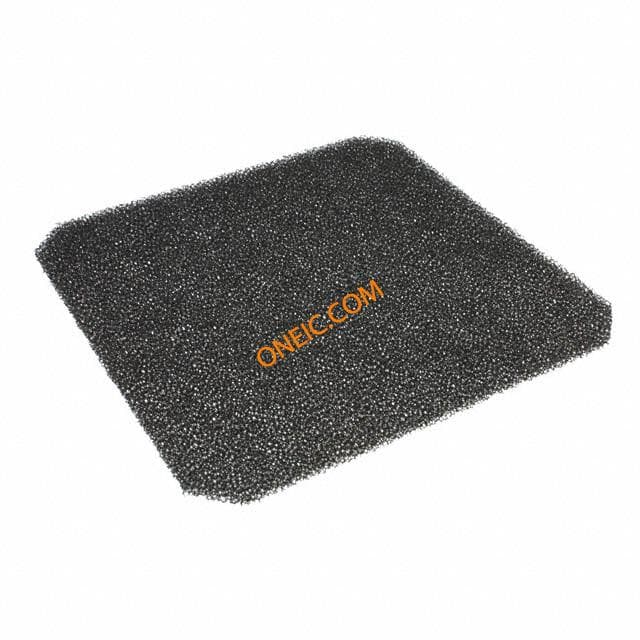

M120-45
Orion Fans
120MM FAN FILTER MEDIA 45PPM Fan Filter; Media; 45 PPI; 4.72 Fan Size FanFilter;Media;45PPI;4.72FanSize

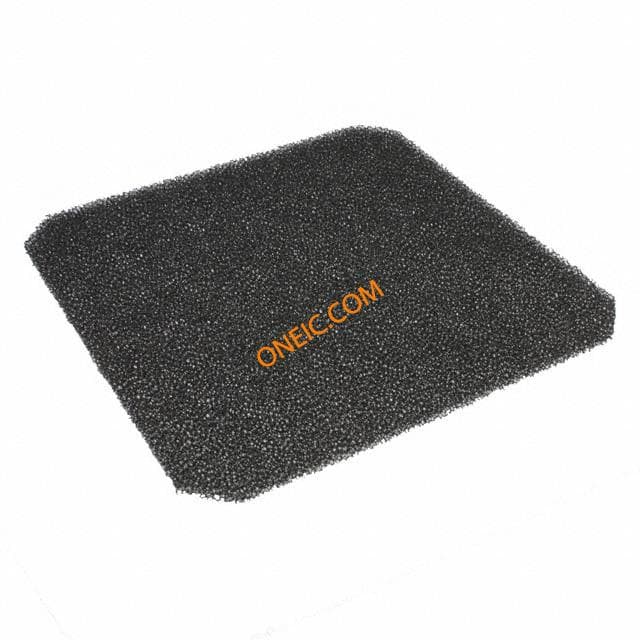

M120-30
