点击放大查看

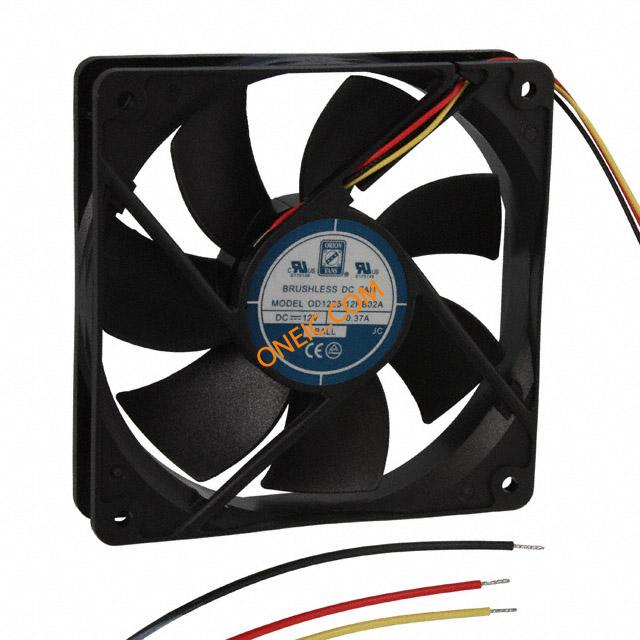

OD1225-12HB02A
| 制造商 | Orion Fans |
| 描述 | FAN DC 120X25 12V W/ O/C ALARM Fans Fan DC 120x25 12V Ball O/C Alarm Fan;DC;12V;120x120x25mm;Sq;89CFM;5W;39dBA;2200RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 39 dB | 转速 | 2200 RPM |
| 功率（瓦） | 5.00W | 额定功率 | 5 W |
| 额定电压 | 12VDC | 供电电压 | 12 V |
| 最大额定电流 | 0.370A | ||
机械参数
| RPM | 2200 RPM | 尺寸 | 4.7x1(120x25)In.(mm) |
| 风量 | 89.0 CFM (2.52m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CW |
| 端接方式 | 3 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.140 in H2O (34.9 Pa) | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 120mm L x 120mm H x 25mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 4.7x1(120x25)In.(mm) |
| 总体尺寸 | 4.7x4.7x1In. | ||
产品信息
| 类型 | Axial Fans | 产品特性 | Locked Rotor Sensor |
| 功能 | DC | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | OD1225Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 65000 hrs @ 45°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
| 自然散热热阻 | 89CFM | 结工作温度 | 70°C |
文档与媒体
