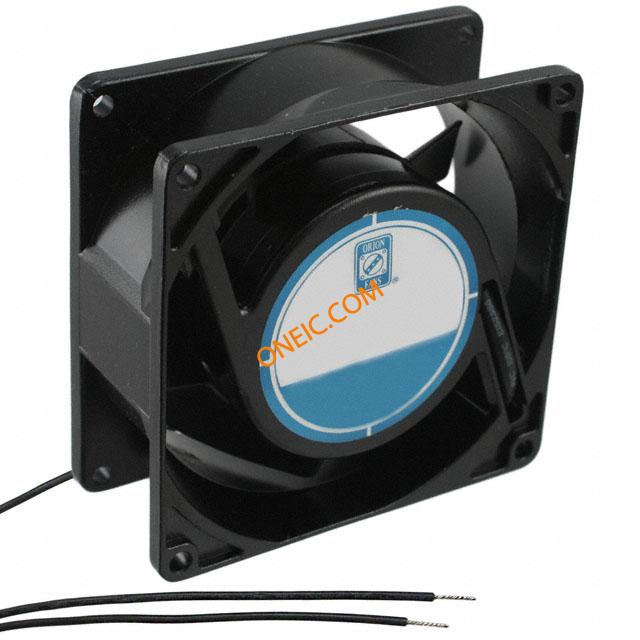

OA938AP-22-1WB
| 制造商 | |
| 描述 | Fans Fan 92x38 220VAC Ball Wire 50cfm FAN AC 92X38.5MM 230V 50CFM Fan; AC; 92 x 92 mm; 38 mm; 230 V; 50 CFM; 9 W; 32 dBA; Ball; 3100 RPM Fans Fan AC 92x38mm 220V Ball 50CFM Wires AC Fan Ball Bearing 230V 9W 50Hz/60Hz 3100RPM 50CFM 32dB Flange Mount Fan;AC;230V;92x92x38mm;Sq;50CFM;9W;32dBA;3100RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 噪声 | 32 dB | 转速 | 3100 RPM |
| 频率 | 50/60Hz | 功率（瓦） | 9W |
| 额定功率 | 9 W | 电压范围 | 160 ~ 260VAC |
| 额定电压 | 230VAC | 供电电压 | 230 V |
机械参数
| RPM | 3100 RPM | 尺寸 | 3.6x1.5(92x38)In.(mm) |
| 风量 | 50.0 CFM (1.41m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.220 in H2O (54.8 Pa) | 壳体材料 | Aluminum |
| 刀片材料 | Polybutylene Terephthalate (PBT) | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Square - 92mm L x 92mm H x 38.5mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 3.6x1.5(92x38)In.(mm) |
| 总体尺寸 | 3.6x3.6x1.5In. | ||
产品信息
| 类型 | Square | 系列 | OA938 |
| 功能 | AC | 方向 | IntakeoverStruts |
| 开关类型 | AC | 制造商全称 | OA938Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 50CFM | 结工作温度 | 80°C |
