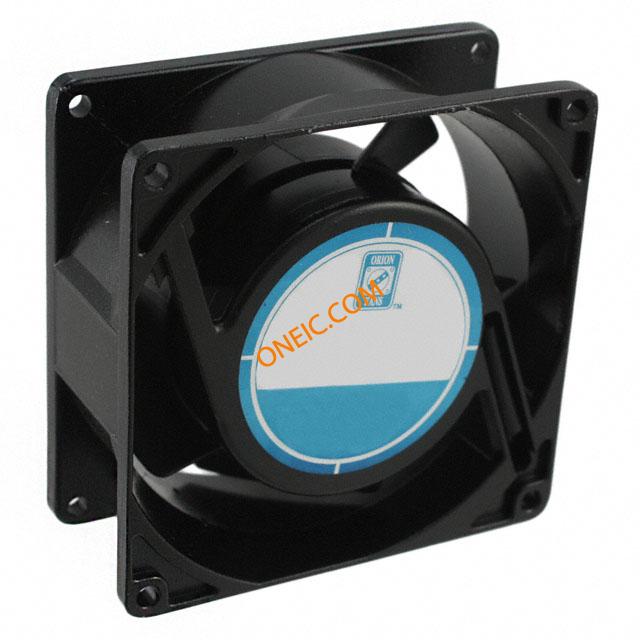

OA938AP-11-2TB

制造商	Orion Fans
描述	Fans Fan 92x38 115VAC Ball Term 32cfm FAN AC 92X38.5MM 115V 39CFM Fans Fan AC 92x38mm 115V Ball 32CFM Terminals
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	Fans	产品类别	Fans
标准包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

噪声	23 dB	转速	2400 RPM
功率（瓦）	5.0W	额定功率	5 W
电压范围	80 ~ 130VAC	额定电压	115VAC
供电电压	115 V

机械参数

RPM	2400 RPM	风量	39.0 CFM (1.10m³/min)
风扇类型	Tubeaxial	端接方式	2 Terminals
轴承类型	Ball	静压	0.170 in H2O (42.3 Pa)
壳体材料	Aluminum	刀片材料	Polybutylene Terephthalate (PBT)
框架材料	Aluminum	尺寸/外形	Square - 92mm L x 92mm H x 38.5mm W
端接样式	Terminals

产品信息

系列

OA938

功能

环境参数

额定寿命

60000 hrs @ 40°C

工作温度

-4 ~ 176°F (-20 ~ 80°C)

文档与媒体

PDF 文档

Orion Fan Catalog
