点击放大查看

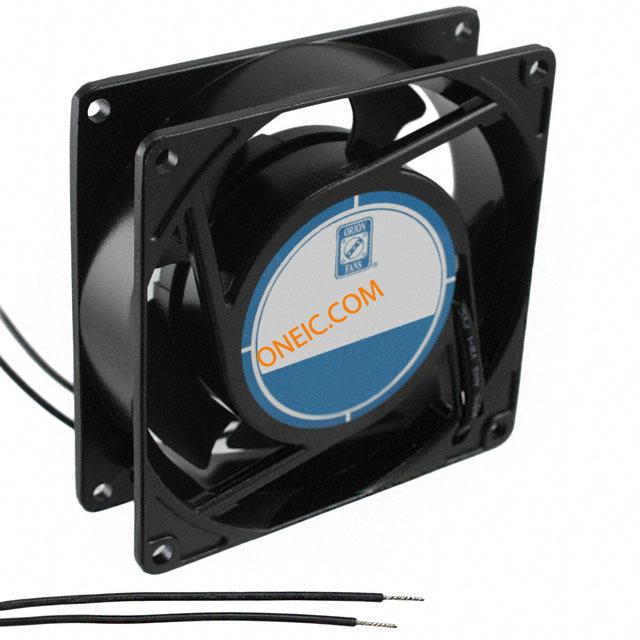

OA92AP-11-1WB
| 制造商 | |
| 描述 | Fans Fan 92x25 115VAC Ball Wire 35cfm FAN AC 92X26MM 115V 35CFM Fan; 3.62 in. L x 3.62 in. H Fans Fan AC 92x25mm 115V Ball 35CFM Wires Fan;AC;115V;50/60Hz;92x92x25mm;Sq;35CFM;13W;30dBA;3000RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 噪声 | 30 dB | 转速 | 3000 RPM |
| 频率 | 50/60Hz | 功率（瓦） | 13.0W |
| 额定功率 | 13 W | 电压范围 | 80 ~ 130VAC |
| 额定电压 | 115VAC | 供电电压 | 115 V |
机械参数
| RPM | 3000 RPM | 尺寸 | 3.6x1(92x25)In.(mm) |
| 风量 | 35.0 CFM (0.991m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.200 in H2O (49.8 Pa) | 壳体材料 | Aluminum |
| 刀片材料 | Polybutylene Terephthalate (PBT) | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Square - 92mm L x 92mm H x 26mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 3.6x1(92x25)In.(mm) |
| 总体尺寸 | 3.6x3.6x1In. | ||
产品信息
| 类型 | Square | 系列 | OA92 |
| 功能 | AC | 方向 | IntakeoverStruts |
| 开关类型 | AC | 制造商全称 | OA92Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 35CFM | 结工作温度 | 80°C |
