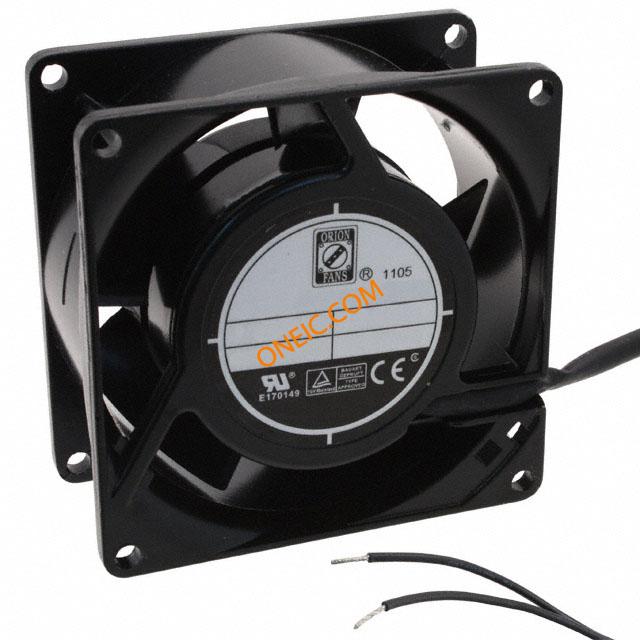

OA80AP-11-1WB
| 制造商 | Orion Fans |
| 描述 | Fans Fan 80x38 115VAC Ball Wire 31cfm FAN AC 80X38 115V 31CFM Fans Fan AC 80x38mm 115V Ball 31CFM Wires AC Fan Ball Bearing 115V 12W 50Hz/60Hz 3000RPM 31CFM 29dB Flange Mount Fan;AC;115V;80x80x25mm;Sq;31CFM;12W;29dBA;3000RPM;Leadwires Fan;AC;115V;50/60Hz;80x80x25mm;Sq;31CFM;12W;29dBA;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 29 dB | 转速 | 3000 RPM |
| 频率 | 50/60Hz | 最大功率 | 12.0W |
| 功率（瓦） | 12.0W | 额定功率 | 12 W |
| 电压范围 | 80 ~ 130VAC | 额定电压 | 115VAC |
| 供电电压 | 115 V | 噪声系数（dB典型值 @ f） | 29 dB |
机械参数
| RPM | 3000 RPM | 尺寸 | 3.2x1(80x25)In.(mm) |
| 风量 | 31.0 CFM (0.878m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 操作力 | 0.240 in H2O (59.8 Pa) | 静压 | 0.240 in H2O (59.8 Pa) |
| 壳体材料 | Aluminum | 刀片材料 | Polybutylene Terephthalate (PBT) |
| 框架材料 | Aluminum | 主要材料 | Fans |
| 尺寸/外形 | Square - 80mm L x 80mm H x 38mm W | 端接样式 | Wire Leads |
| 风扇附件类型 | 3.2x1(80x25)In.(mm) | 总体尺寸 | 3.2x3.2x1In. |
产品信息
| 类型 | Square | 系列 | OA80 |
| 功能 | AC | 方向 | IntakeoverStruts |
| 开关类型 | AC | 制造商全称 | OA80Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 31CFM | 结工作温度 | 80°C |
