OA172SAPL-11-2TB
| 制造商 | Orion Fans |
| 描述 | FAN 115VAC 172X150X38.5MM 162CFM Fans Fan AC 172x38mm 220V Ball 103CFM Terminal Fan;AC;115V;172x150x38mm;Obround;162CFM;27W;50dBA;2750RPM;Terminals |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 50 dB | 转速 | 2750 RPM |
| 频率 | 50/60Hz | 功率（瓦） | 27W |
| 额定功率 | 27 W | 电压范围 | 103 ~ 126VAC |
| 额定电压 | 115VAC | 供电电压 | 115 V |
机械参数
| RPM | 2750 RPM | 尺寸 | 6.8x5.9x1.5(172x150x38)In.(mm) |
| 风量 | 162.0 CFM (4.59m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 2 Terminals | 轴承类型 | Ball |
| 静压 | 0.350 in H2O (87.2 Pa) | 壳体材料 | Aluminum |
| 刀片材料 | Polybutylene Terephthalate (PBT) | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 38.5mm W |
| 端接样式 | Terminals | 风扇附件类型 | 6.8x5.9x1.5(172x150x38)In.(mm) |
| 总体尺寸 | 6.8x5.9x1.5In. | ||
产品信息
| 类型 | Axial Fans | 功能 | AC |
| 方向 | IntakeoverStruts | 开关类型 | AC |
| 制造商全称 | OA172SAPLSeries | 配置 | Obround |
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 162CFM | 结工作温度 | 80°C |
文档与媒体
相关型号
C45-24P
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 NEMA 1-15 Plug FAN CORD 45DEG 24" W/AC PLUG Fan Cord; 24 in.; 45 deg; 1; AC Plug; NEMA; NEMA 1-15P AC Plug Fan Accessories Fan Cord 45 Degree 24 NEMA 1-15 Plug FanCord;24in.;45deg;1;ACPlug;NEMA;NEMA1-15PACPlug
C180-36
Orion Fans
Fan Cords & Accessories Fan Cord 180 Degree 36 Blunt Cut Term FAN CORD 180DEG 36" Cord; Fan; 36 in.; 180 deg; C180 Fan Accessories Fan Cord 180 Degree 36 Blunt Cut Term Cord,Fan;36in.;180deg;C180
C45-144P
Orion Fans
Fan Cords & Accessories 45 DEG 144INCH FAN CORD 45DEG 144" W/AC PLUG Fan Accessories 45 DEG 144INCH
C45-6DC
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 6 Head Cut Term FAN CORD 45DEG 6POS 24" Cord; Fan; 24 in.; 45 deg; C45 Fan Accessories Fan Cord 45 Degree 24 6 Head Cut Term Cord,Fan;24in.;45deg;C45
G172-10HA
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 172mm FAN GUARD METAL 172MM Fan Guard; Steel (Wire); 6.77 in.; Electroplated Nickel Chrome; 162x154x6.5mm Fan Accessories Wire FanGuard Chrome for Fan Size 172mm Thrml Mgmt Access Finger Guard 172mm FanGuard;Steel(Wire);6.77in.;ElectroplatedNickelChrome;162x154x6.5mm
C45-3DC
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 3 Head Cut Term FAN CORD 45DEG 3POS 24" Cord; 24 in.; 45 deg; 2; C45; UL Listed; CSA Certified; Blunt Cut Fan Accessories Fan Cord 45 Degree 24 3 Head Cut Term Cord;24in.;45deg;2;C45;ULListed,CSACertified;BluntCut
C90-144P
Orion Fans
Fan Cords & Accessories 144 90DEG FAN CORD 90DEG 144" W/AC PLUG Cord; Fan; 144 in.; 90 deg; Straight Fan Accessories 144 90DEG Cord,Fan;144in.;90deg;Straight
GRM172-45
Orion Fans
Fan Cords & Accessories Fan Filter 172mm 45 Pores Media Black FAN FILTER 172MM 45PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 45ppi;172mm Fan Accessories Fan Filter Kit 172mm 45 Pores Media Black Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam45ppi;172mm
C90-72
Orion Fans
Fan Cords & Accessories Fan Cord 90 Degree 72 Blunt Cut Term FAN CORD 90DEG 72" Cord; 72 in.; 90 deg; 2; C45; UL Listed; CSA Certified; Blunt Cut Fan Accessories Fan Cord 90 Degree 72 Blunt Cut Term Cord;72in.;90deg;2;C45;ULListed,CSACertified;BluntCut
C180-24
Orion Fans
Fan Cords & Accessories Fan Cord 180 Degree 24 Blunt Cut Term FAN CORD 180DEG 24" Cord; Fan; 24 in.; 180 deg; C180 Fan Accessories Fan Cord 180 Degree 24 Blunt Cut Term Cord,Fan;24in.;180deg;C180
C45-4DC-72P
Orion Fans
Fan Cords & Accessories Fan Cord 45deg. 4pos 72 NEMA 1-15 Plug FAN CORD 45DEG 4POS 72" AC PLUG Fan Cord; 72 in.; 45 deg; 4; AC Plug; NEMA; NEMA 1-15P AC Plug Fan Accessories Fan Cord 45deg. 4pos 72 NEMA 1-15 Plug FanCord;72in.;45deg;4;ACPlug;NEMA;NEMA1-15PACPlug
WMG172M
Orion Fans
Fan Cords & Accessories Guard 172mm Mill Mesh Filter Media FAN GUARD 172MM WIRE MESH NATURL Mesh Guard; Wire Mesh; For 60mm; 80mm; 92mm; 120mm; and 172mm Fans; Filters Fan Accessories WireMeshGuard 172mm Mill Finish Filter Thrml Mgmt Access Fan Filter Screen 172mm Aluminum/Stainless Steel MeshGuard;WireMesh;For60mm,80mm,92mm,120mm,and172mmFans,Filters
C90-12
Orion Fans
Fan Cords & Accessories Fan Cord 90 Degree 12 Blunt Cut Term FAN CORD 90DEG 12" Cord; Fan; 12 in.; 90 deg; C90 Fan Accessories Fan Cord 90 Degree 12 Blunt Cut Term Cord,Fan;12in.;90deg;C90
C180T-72
Orion Fans
Fan Cords & Accessories T Plug 72 inch FAN CORD T TYPE 72" Cord; 72 in.; 90 deg; 2; C45; UL Listed; CSA Certified; Blunt Cut Fan Accessories T Plug 72 inch Cord;72in.;90deg;2;C45;ULListed,CSACertified;BluntCut
C45-3DC-72P
Orion Fans
Fan Cords & Accessories Fan Cord 45deg. 3pos 72 NEMA 1-15 Plug FAN CORD 45DEG 3POS 72" AC PLUG Fan Accessories Fan Cord 45deg. 3pos 72 NEMA 1-15 Plug Fan;Cord;PigtailCord;72inLeadLength;3Plugs;12inBetweenPlugs;18AWG;Plug
C90-36
Orion Fans
Fan Cords & Accessories Fan Cord 90 Degree 36 Blunt Cut Term FAN CORD 90DEG 36" Cord; Fan; 36 in.; 90 deg; C90 Fan Accessories Fan Cord 90 Degree 36 Blunt Cut Term Cord,Fan;36in.;90deg;C90
WMG172B
Orion Fans
Fan Cords & Accessories Guard 172mm Mesh Black FAN GUARD 172MM WIRE MESH BLACK Fan Accessories WireMeshGuard 172mm Black Finish
C180-48P
Orion Fans
FAN CORD 180DEG 48" W/AC PLUG Fan Accessories Fan Cord 180 Degree 48 NEMA 1-15 Plug
C45-144
Orion Fans
FAN CORD 45DEG 144" Fan Accessories FanCord 45 Degree 144

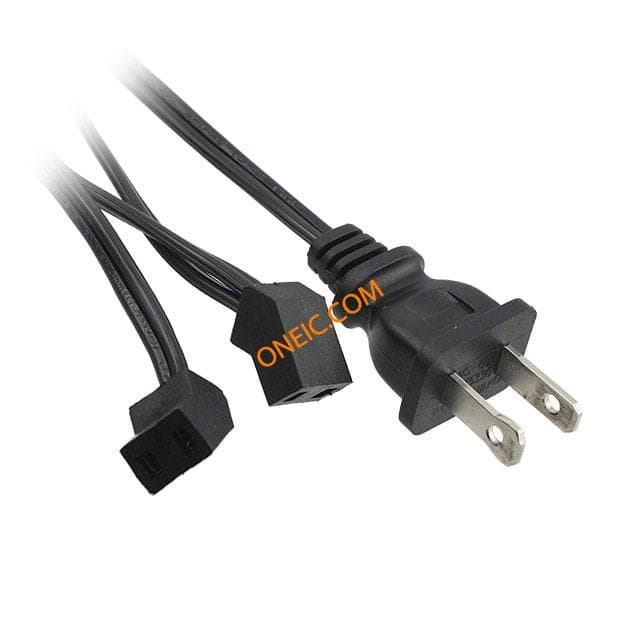

C45-2DC-144P
