点击放大查看

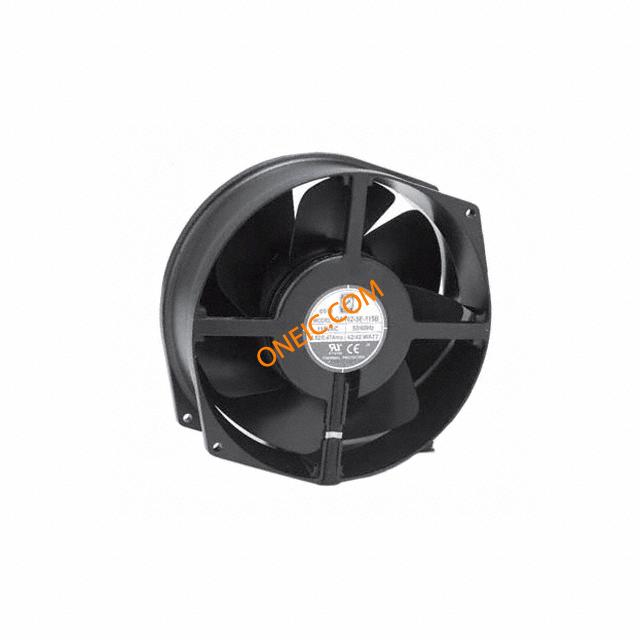

OA162-5E-115WB
| 制造商 | Orion Fans |
| 描述 | Fans Fan 172x51 115VAC Ball Wire 241cfm FAN AC 172X55 115V 241CFM Fan; 137 mm Dia.; 55 mm; 120 VAC; 230 CFM; 50/60 Hz; 37 W; AC Cooling; 52 dB Fans Fan AC 172x51mm 115V Ball 241CFM Wires Fan;AC;120V;172x55mm;Round;241CFM;31W;66dBA;3400RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 噪声 | 66 dB | 转速 | 3000 RPM |
| 频率 | 50/60Hz | 功率（瓦） | 31W |
| 额定功率 | 37 W | 电压范围 | 80 ~ 130VAC |
| 额定电压 | 115VAC | 供电电压 | 115 V |
机械参数
| RPM | 3400 RPM | 尺寸 | 6.7x2.2(172x55)In.(mm) |
| 风量 | 241.0 CFM (6.82m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.730 in H2O (181.8 Pa) | 壳体材料 | Aluminum |
| 刀片材料 | Aluminum | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Round - 172mm Dia x 55mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 6.7x2.2(172x55)In.(mm) |
| 总体尺寸 | 6.7x2.2In. | ||
产品信息
| 类型 | Round | 系列 | OA162 |
| 功能 | AC | 方向 | IntakeoverStruts |
| 开关类型 | AC | 制造商全称 | OA162Series |
| 配置 | Round | ||
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -40 ~ 158°F (-40 ~ 70°C) |
| 自然散热热阻 | 241CFM | 结工作温度 | 70°C |
