点击放大查看

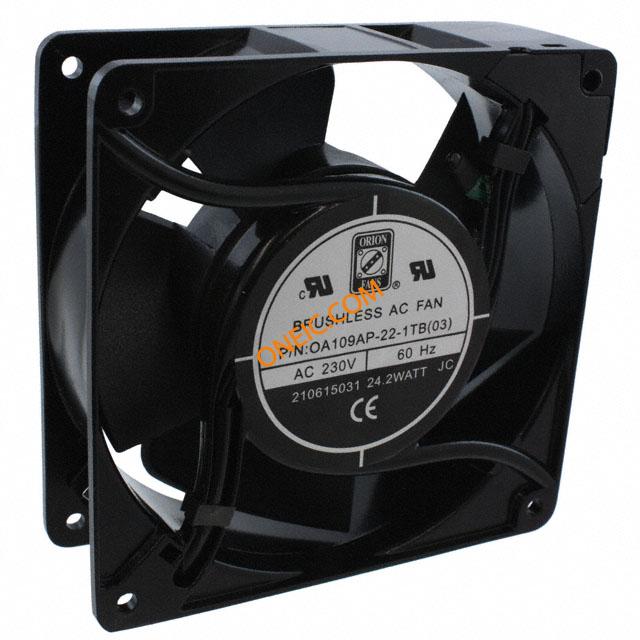

OA109AP-22-1TB03
| 制造商 | Orion Fans |
| 描述 | 119.5X38.5MM 220VAC TEMP CONTRLD Fans Fan AC 120x38mm 220V Ball 63 - 97CFM Term Fan;AC;230V;120x120x38mm;Sq;97CFM;19.5W;45dBA;2500RPM:Terminals |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 42 dB | 转速 | 1600 RPM to 2500 RPM |
| 频率 | 50/60Hz | 功率（瓦） | 15.0W |
| 额定功率 | 8 W to 19.5 W | 电压范围 | 160 ~ 260VAC |
| 额定电压 | 230VAC | 供电电压 | 230 V |
| 最大额定电流 | 0.12A | ||
机械参数
| RPM | 3000 RPM | 尺寸 | 4.7x1.5(120x38)In.(mm) |
| 风量 | 110.0 CFM (3.11m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 2 Terminals | 轴承类型 | Ball |
| 静压 | 0.280 in H2O (69.7 Pa) | 壳体材料 | Aluminum |
| 刀片材料 | Polybutylene Terephthalate (PBT) | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Square - 119.5mm L x 119.5mm H x 38.5mm W |
| 端接样式 | Terminal | 风扇附件类型 | 4.7x1.5(120x38)In.(mm) |
| 总体尺寸 | 4.7x4.7x1.5In. | ||
产品信息
| 类型 | Brushless Axial Fans | 系列 | OA109AP |
| 产品特性 | Temperature Sensor | 功能 | AC |
| 方向 | ExhaustoverStruts | 开关类型 | AC |
| 制造商全称 | OA109Series | 配置 | Square |
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -20°C ~ 80°C |
| 自然散热热阻 | 97CFM | 结工作温度 | 70°C |
