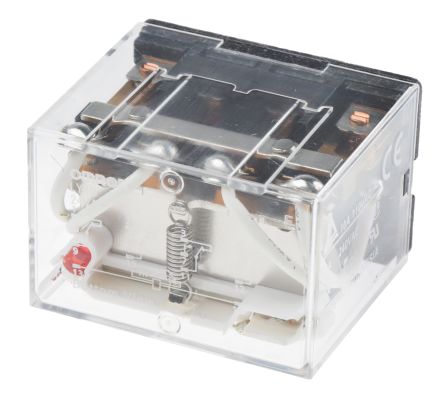

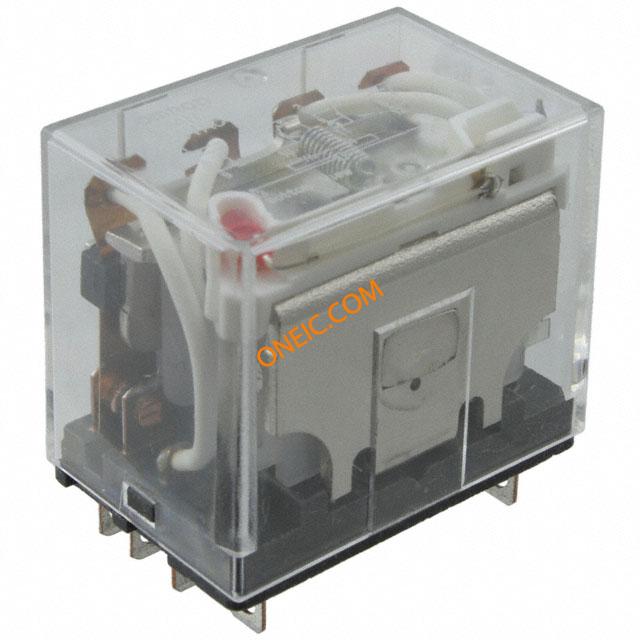

LY4N-AC24
| 制造商 | Omron Corporation |
| 描述 | Electromechanical Relay 4PDT 10A 24VAC 78Ohm Socket RELAY GEN PURPOSE 4PDT 10A 24V General Purpose Relays 4PDT Relay 24VAC BRKT/IND PLUG POWER RELAY, 4PDT, 24VAC, 10A, PLUG IN RELAY;E-MECH;GENPURP;4PDT;CUR-RTG10A;CTRL-V24AC;VOL-RTG250/125AC/DC;14PIN 欧姆龙(OMRON) 中间继电器 Relay General Purpose LED indicator Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 10 AMP Coil Voltage: 24 Vac Configuration: 4PDT Omron E5CC-RX3A5M-000 4 刀双掷 插入式 非闭锁继电器, 10 A, 24V ac |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Electromechanical Relay |
| 产品类别 | General Purpose Relays | 标准包装数量 | 1 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364190 | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 2.5 VA |
| 量程（°/s） | :OMRON - LY Series | 线圈电流 | 80mA |
| 释放时间 | 25ms | 额定功率 | 240W|1.1kVA |
| 可见输出 | Yes | 额定电压 | 125 |
| 线圈电阻 | 78 Ohms | 承载电流 | :10A |
| 推频（MHz/V） | No | 输出电流 | :5A |
| 供电电压 | 24VAC | 开关电压 | 250VAC, 125VDC - Max |
| Vgs(th)（最大）@ Id | 7.2 VAC | 钳位电压 | 19.2VAC |
| 二极管配置 | No | 最大额定电流 | 10 |
| 触点电压（最大） | :110V | 最小输入电压 | 7.2VAC |
| 平均正向功率 | 1.95 VA to 2.5 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VAC |
| 触点额定电流 | 10A | 数字供电电压 | :24V |
机械参数
| 密封 | Unsealed | 深度 | 41.5 |
| 高度 | 42.4 | 重量 | 0.068 |
| 包装方式 | Bulk | 触点形式 | 4 Form C |
| 安装类型 | Socket | 安装样式 | Through Hole |
| 冷却的封装 | Dust Cover | 触头材料 | Silver |
| 总长度 | 28 | 端接样式 | Quick Connect |
| 触点数 | 14 | 接触件端接 | Pin |
| 典型触点布局 | 4PDT | ||
产品信息
| 类型 | General Purpose Relay | 系列 | LY |
| 产品特性 | LED Indicator | 继电器类型 | Non-Latching |
| 行业别名 | LY4N-AC24 | ||
