点击放大查看

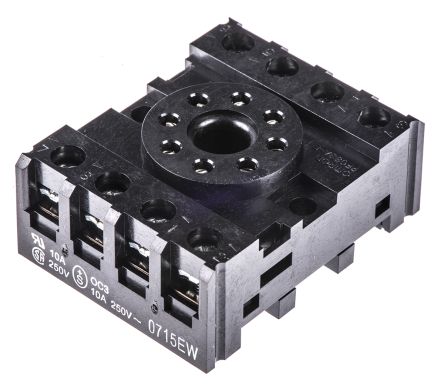

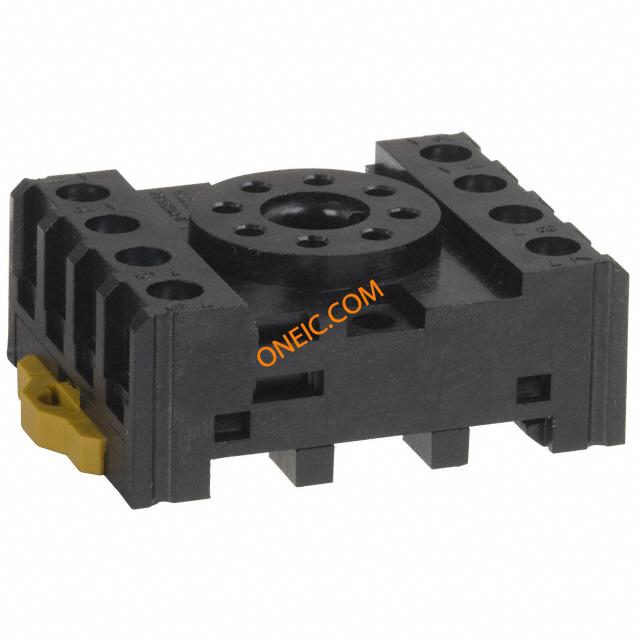

PF083A-E
| 制造商 | Omron Corporation |
| 描述 | Relay Sockets & Hardware DPDT SOCKET MK Conn Relay Socket SKT 8 POS Solder ST Thru-Hole SOCKET RELAY 8 OCTAL TRACK MNT Relay Socket For Use With Various Series SOCKET, DIN/SURFACE, 8 PIN, RELAY RELAY SOCKET ACCESSORY,RELAY;SOCKET;1;SURFACE/RAIL;MK1AND2POLE;-10TODEGC Socket; PIN:8; Mounting: DIN; Series: MK2 SOCKET -MK2P RELAY Base for the hat rail, PF083A-E, Omron Electronic Components 继电器插座, 适用于各种系列 |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Connector Socket |
| 零件号别名 | 1340949 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | :250VAC | 最大额定电流 | :10A |
机械参数
| 深度 | :58mm | 宽度 | :64mm |
| 高度 | 21 | 长度 | :92mm |
| 重量 | 0.05 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 端子类型 | :Screw | 连接器类型 | :Screw |
| 安装样式 | Track | 引脚数 | :8 |
| 总长度 | 52 | 端接样式 | Screw Terminal |
| 连接器颜色 | :Black | 触点数 | 8 |
| 位数 | 8 | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | PFP-100N, PFP-M | 继电器类型 | MK2 |
| 附件类型 | Mounting Track | 电气寿命 | round socket |
| 单元数量 | 1 | 行业别名 | PF083A-E |
| 应用细节 | All models meet UL and CSA approved, Arc barrier equipped | 有铅工艺兼容 | :No |
| 适用产品/相关产品 | PF083A | ||
环境参数
| 测试温度 | :No | 工作温度 | :55°C |
文档与媒体
相关型号

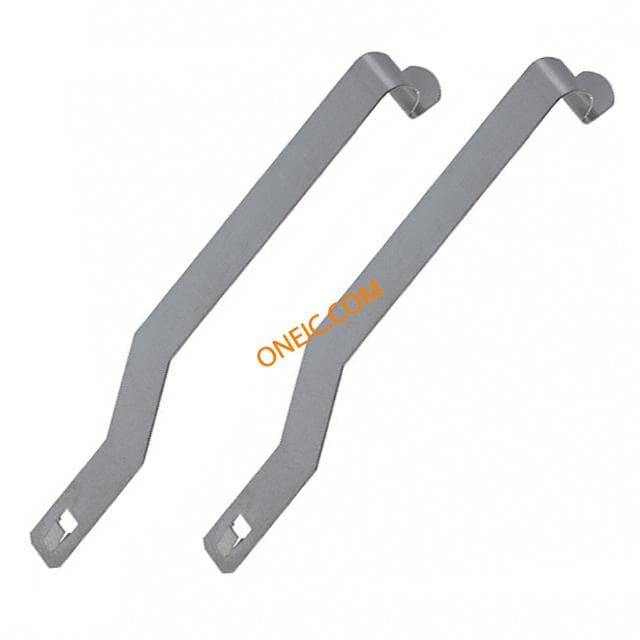

PFC-A1
