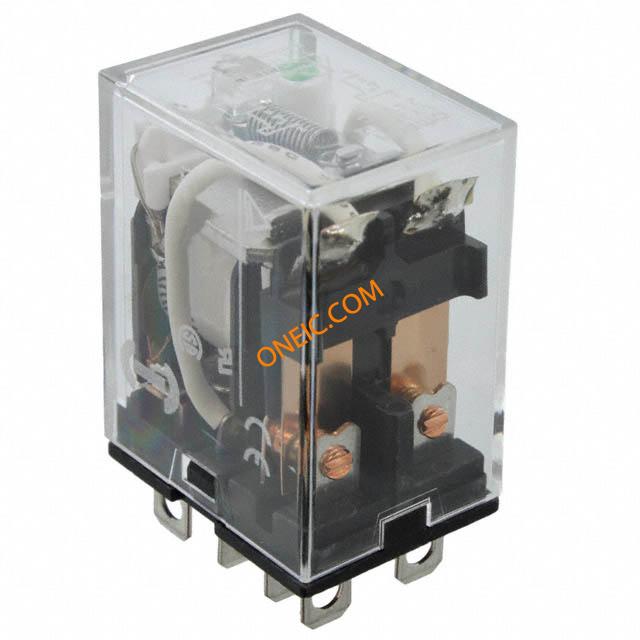

LY2ZN-DC24
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays GP RELAY RELAY GEN PURPOSE DPDT 5A 24V Electromechanical Relay DPDT 7A 24VDC 650Ohm Socket 欧姆龙(OMRON) 中间继电器 Relay General Purpose LED indicator Bifurcated contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 7 AMP Coil Voltage: 24 Vdc Configuration: DPDT |
| 分类 |
商业参数
| 其他名称 | LY2ZNDC24 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 1 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 5 Amps | 线圈类型 | Non-Latching |
| 线圈功率 | 900 mW | 线圈电流 | 36.9 mA |
| 释放时间 | 25ms | 线圈电阻 | 650 Ohms |
| 供电电压 | 24 VDC | 开关电压 | 250 VAC, 125 VAC |
| Vgs(th)（最大）@ Id | 2.4 VDC | 开关电流 | 550VA, 120W |
| 最小负载要求 | 10mA @ 5VDC | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VDC | 触点额定电流 | 10 A |
| 每极负载侧连接方式 | 5A @110VAC/24VDC | ||
机械参数
| 包装方式 | Bulk | 触点形式 | DPDT |
| 安装类型 | Socketable | 安装样式 | Through Hole |
| 触头材料 | Silver Alloy | 端接样式 | Plug In |
| 接触件端接 | Pin | 典型触点布局 | 2C DPDT |
产品信息
| 类型 | Relays | 系列 | LY |
| 产品特性 | LED Indicator | 功能 | Single Side Stable |
| 继电器类型 | General Purpose | 卡标准 | General Purpose Relay |
环境参数
| 额定寿命 | 500,000 ops | 动作时间 | 25ms |
| 工作温度 | -25°C ~ 55°C | ||
文档与媒体
相关型号
PT08
omron electronics
Conn Relay Socket SKT 8 POS Solder ST Panel Mount Relay Sockets & Hardware SOCKET FOR LY SP DP RELAY SOCKET SLDR EAR LY SER Socket, back-connecting, 8-pin, solder terminals, PT08 ACCESSORY,RELAY;SOLDER;1;CHASSIS;LY1AND2POLERELAY;GENERALPURPOSE LY1 SOCKET/SOLDER TERM. Relays Accessories
PT08-0
Omron Industrial
Relay Sockets & Hardware SOCKET FOR LY SP DP Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PCB MNT LY SER Relay Socket For Use With LY1-0, LY2-0, LY2Z-0 RELAY SOCKET SOCKET, PCB, LY2, RELAY ACCESSORY,RELAY;PCB;1;PCB;LY1AND2POLERELAY;GENERALPURPOSE Socket; PIN:8; 10A; 250VAC; H:12mm; W:22mm; Mounting: PCB; -25÷55°C 继电器插座, 适用于LY1-0, LY2-0, LY2Z-0
PTF08A-E
Omron Industrial
Relay Sockets & Hardware SOCKET FOR LY SP DP RELAY SOCKET TRACK MNT LY SER Relay Socket For Use With Various Series Conn Relay Socket SKT 8 POS Screw ST RELAY SOCKET ACCESSORY,RELAY;SOCKET;1;TRACK;LY1AND2POLERELAY;GENERALPURPOSE Socket; PIN:8; 10A; 250VAC; H:30mm; W:28.5mm; Mounting: DIN LY1/2 SOCKET/TRACK MOUNT Relay socket, PTF08A-E, Omron Electronic Components 继电器插座, 适用于各种系列
PT08QN
Omron Industrial
Relay Sockets & Hardware LY1 SOCKET WIRE WRAP TERM. SOCKT BACK-CONNCTNG FOR LY RELAY Conn Relay Socket SKT 8 POS Wire Wrap ST Panel Mount
