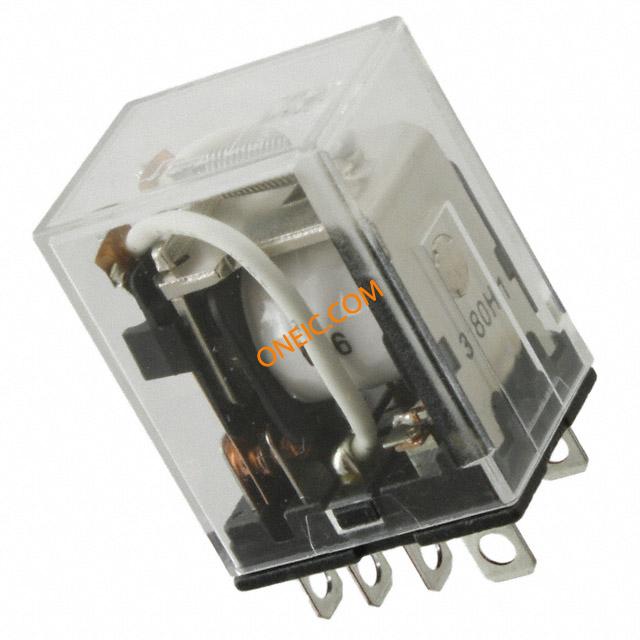

LY2-DC6
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays 10A PWR Relay DPDT 6VDC RELAY GEN PURPOSE DPDT 10A 6V Electromechanical Relay DPDT 10A 6VDC 40Ohm Socket POWER RELAY, DPDT, 6VDC, 10A, PLUG IN RELAY;GENERALPURPOSE;PLUG-IN;DPDT;STANDARD;6VDC 欧姆龙(OMRON) 中间继电器 Relay General Purpose Standard Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 10 AMP Coil Voltage: 6 Vdc Configuration: DPDT Omron E5AN-R1T-N AC100-240 双刀双掷 插入式 非闭锁继电器, 10 A, 6V dc |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 1231894 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364110 |
电气参数
| 线圈类型 | Non-Latching | 线圈功率 | 900 mW |
| 量程（°/s） | :OMRON - LY Series | 线圈电流 | 150 mA |
| 释放时间 | 25ms | 线圈电阻 | 40 Ohms |
| 承载电流 | :10A | 输出电流 | :10A |
| 供电电压 | 6 VDC | 开关电压 | 250 VAC, 125 VAC |
| Vgs(th)（最大）@ Id | 0.6 VDC | 触点电压（最大） | :110V |
| 平均正向功率 | 0.9 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 4.8 VDC |
| 触点额定电流 | 10 A | 数字供电电压 | :24V |
机械参数
| 宽度 | 27.94 mm | 高度 | 36.06 mm |
| 长度 | 21.59 mm | 重量 | 0.032 |
| 包装方式 | Bulk | 触点形式 | DPDT |
| 安装类型 | Socketable | 安装样式 | Through Hole |
| 触头材料 | Silver Alloy | 端接样式 | Plug In |
| 接触件端接 | Pin | 典型触点布局 | :DPDT |
产品信息
| 系列 | LY | 继电器类型 | General Purpose |
| 行业别名 | LY2-DC6 | ||
环境参数
| 动作时间 | 25ms | 工作温度 | -25°C ~ 55°C |
