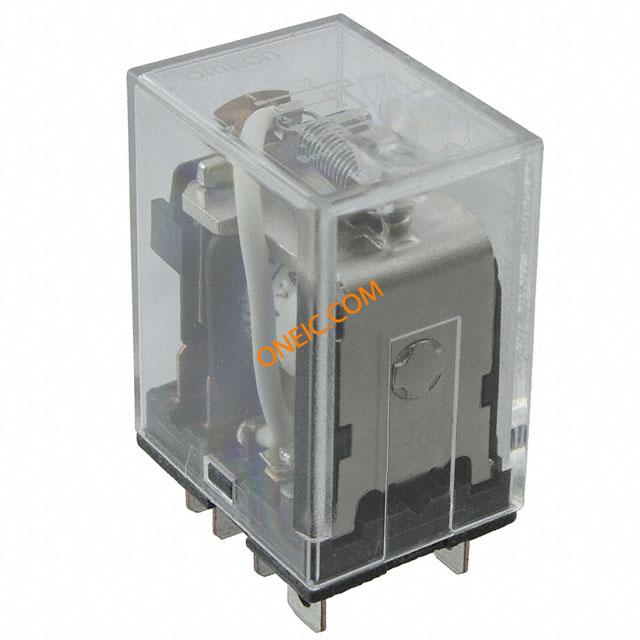

LY1-AC24
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays PLG-N SPDT 24VAC Electromechanical Relay SPDT 15A 24VAC 180Ohm Socket RELAY GEN PURPOSE SPDT 15A 24V RELAY;E-MECH;GENPURP;SPDT;CUR-RTG15A;CTRL-V24AC;VOL-RTG250/125AC/DC;8PIN Relay General Purpose Standard Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 15 AMP Coil Voltage: 24 Vac Configuration: SPDT |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 9864709 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 线圈类型 | Non-Latching | 线圈功率 | 1.2 VA |
| 线圈电流 | 53.8 mA | 释放时间 | 25ms |
| 额定功率 | 360W|1.7kVA | 可见输出 | No |
| 额定电压 | 125 | 线圈电阻 | 180 Ohms |
| 推频（MHz/V） | No | 供电电压 | 24 VAC |
| 开关电压 | 250 VAC, 125 VDC | Vgs(th)（最大）@ Id | 7.2 VAC |
| 钳位电压 | 19.2VAC | 二极管配置 | No |
| 最大额定电流 | 15 | 最小输入电压 | 7.2VAC |
| 平均正向功率 | 1 VA to 1.2 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VAC |
| 触点额定电流 | 15 A | ||
机械参数
| 密封 | Unsealed | 深度 | 28 |
| 宽度 | 27.94 mm | 高度 | 36.06 mm |
| 长度 | 21.59 mm | 包装方式 | Bulk |
| 触点形式 | SPDT | 安装类型 | Socket |
| 安装样式 | Through Hole | 冷却的封装 | Dust Cover |
| 触头材料 | Silver Alloy | 总长度 | 21.5 |
| 端接样式 | Quick Connect | 触点数 | 8 |
| 接触件端接 | Pin | 典型触点布局 | SPDT |
产品信息
| 类型 | General Purpose Relay | 系列 | LY |
| 继电器类型 | Non-Latching | 卡标准 | Power Relay |
| 行业别名 | LY1-AC24 | ||
环境参数
| 动作时间 | 25ms | 工作温度 | -25°C ~ 55°C |
