K3HB-XVA 24VAC/VDC
| 制造商 | Omron Corporation |
| 描述 | Controllers AC Volt Input 24 VA C/DC PROCESS INDICATR AC VOLTAG INPUT 欧姆龙(OMRON) 固态继电器 |
| 分类 |
商业参数
| 零件号别名 | K3HB-XVA24VACVDC | 产品类别 | Controllers |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 精度 | ±0.3% + 5 digits | 输出类型 | Option Cards Available |
| 显示类型 | LCD | 供电电压 | 24VAC/VDC |
机械参数
| 重量 | 0.662 lb (300.28g) | 端接方式 | Screw Terminals |
| 安装类型 | Panel Mount, Push In | 端接样式 | Screw Terminal |
| 面板开孔尺寸（外形） | Rectangular - 92.00mm x 45.00mm | 显示字符高度 | 0.193" (4.90mm), 0.559" (14.20mm) |
产品信息
| 类型 | Process Meter | 系列 | K3HB |
| 产品特性 | Hold Function, NEMA 4X Sealing Gasket, Position Meter, Terminal Cover | 面板尺寸 | 3.78" W x 1.89" H (96.0mm x 48.0mm) |
| 显示样式 | Green, Red Characters, Black Background | 显示位数 | 5 |
| 测量范围 | 0 ~ 1.9999VAC to 0 ~ 400VAC | 每行字符数 | 5, 5 |
环境参数
| 防护等级 | IP66 (Face), IP20 (Rear), IP00 (Terminal) | 工作温度 | -10°C ~ 55°C |
相关型号
K35-4
Omron Industrial
Sensor Hardware & Accessories 8 Pt. Event Brd/PNP Con. EVENT INPUT BOARD 8PTS PNP K3HB 欧姆龙(OMRON) 数字面板表
K35-2
Omron Industrial
Sensor Hardware & Accessories 8 Pt. Event Brd/NPN Con Panel Meters With Advanced Signal Processing Capabilities EVENT INPUT BOARD 8PTS NPN K3HB 欧姆龙(OMRON) 数字面板表
K34-DRT
Omron Industrial
Sensor Hardware & Accessories Devicenet Module DEVICENET MODULE FOR K3HB 欧姆龙(OMRON) 数字面板表
K34-C1
Omron Industrial
Controllers High-Low Relay Output Board Panel Meters With Advanced Signal Processing Capabilities RELAY OUTPT BOARD HI/LO FOR K3HB 欧姆龙(OMRON) 功率继电器 Omron 选件卡 2296087, 使用于K3HB 数字指示器
K34-T2
Omron Industrial
Controllers Transistor PNP Open HH/H/PASS/L/LL TRNS OUT PNP HH/H/PASS/L/LL K3HB 欧姆龙(OMRON) 数字面板表
K34-C2
Omron Industrial
Controllers 63HB HH/H/L/LL RLYOUTPUT BRD Panel Meters With Advanced Signal Processing Capabilities RELAY OUTPT BOARD HH/H/LL/L K3HB O/P option for K3HB, 5 relay SPST-NO OutputBoard,RelayContact(HH/H/LL/L:SPST-NOeach) Omron 继电器模块
K32-DICN
Omron Industrial
Controllers Special Event Input Cable CABLE SPECIAL EVENT INPUT 欧姆龙(OMRON) 电气装备电缆
K35-1
Omron Industrial
Controllers 5 Pt. Event NPN Terminal Panel Meters, Panel Meters With Advanced Signal Processing Capabilities EVENT INPUT BOARD 5PTS NPN K3HB i/p option card, event input 5 point NPN 欧姆龙(OMRON) 数字面板表
K34-T1
Omron Industrial
Relay Sockets & Hardware Transistor NPN Open HH/H/PASS/L/LL Panel Meters With Advanced Signal Processing Capabilities TRNS OUT HH/H/PASS/L/LL NPN K3HB 欧姆龙(OMRON) 数字面板表
K32-BCD
Omron Industrial
Controllers Special BCD output Cable Cable Assembly Data 0.3m K3HB to 37 POS D-Subminiature F-F CABLE SPECIAL BCD OUTPUT 欧姆龙(OMRON) 功率继电器

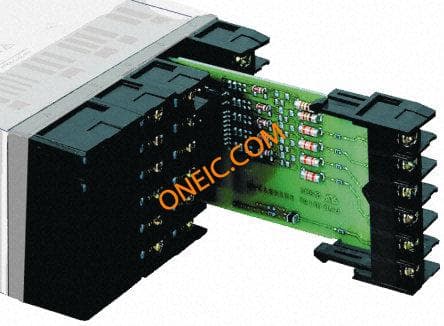

K35-3
