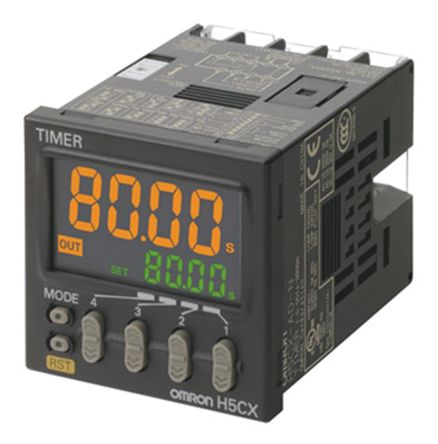

H5CX-A11-N AC100-240
| 制造商 | Omron Corporation |
| 描述 | Timers 11-PIN RELAY OUT Multi-Function 11-PIN,RELAY OUT,MULTI-FNCTN RELAY TIMER DGTL SPDT 100/240VAC DIGITAL MULTIFUNCTION TIMER TIMER, MULTIFUNCTION, 4 DIGITS, 48X48MM Relay;E-Mech;Timing;Multi-Function;Cur-Rtg5A;Ctrl-V100-240AC;SocketMnt;11Pin Omron JS1-12V-F 多功能 计时继电器, 0.001 s → 9999 h, 单刀双掷, 1触点, SPDT, 100 → 240 V 交流，12 → 24 V 直流，24 V 交流 |
| 分类 |
商业参数
| 产品 | Digital Timer | 零件号别名 | 1825561 H5CXA11NAC100/240 |
| 产品类别 | Timers | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364110 |
电气参数
| 输出端 | SPDT | 电路 | SPDT (1 Form C) |
| 延迟时间 | 0.001 Sec ~ 9999 Hrs | 输入类型 | NPN/PNP |
| 复位时间 | :500ms | 输出类型 | Mechanical Relay |
| 量程（°/s） | 0.001 s to 9999 hr | 显示类型 | 4 Digit LCD Backlight |
| 开通延迟时间 | :0.001s | 供电电压 | 100 ~ 240VAC |
| 输出数量 | 1 | 启动定时方式 | Input Voltage, Trigger Signal |
| 平均正向功率 | :6.2VA | 触点额定值 @ 电压 | 5A @ 250VAC |
机械参数
| 宽度 | :45mm | 重量 | 0.1 |
| 触点形式 | 5Aat250VAC/30VDC | 安装类型 | Socket |
| 连接器类型 | 11PinSocket | 安装样式 | Flush,SurfaceorDinRail |
| 主要材料 | DigitalTimer | 尺寸/外形 | 58H×48W×62.5D |
| 端接样式 | 11 Pin Socketable | 面板开孔尺寸（外形） | :45mm |
产品信息
| 类型 | Timer | 系列 | H5CX |
| 功能 | Programmable (Multi-Function) | 继电器类型 | Integrated |
| 制造商全称 | H5CXSeries | 字符尺寸 | :11.5mm |
| 其他规格 | :9999h | 定时调节方式 | DIP Switches |
| 输入数量及类型 | 3 | ||
环境参数
| 防护等级 | IP66 | ||
