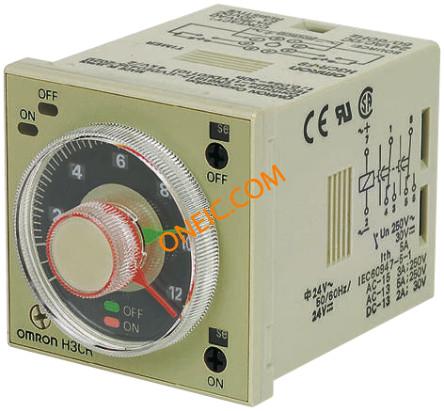

H3CR-F8 AC/DC24
| 制造商 | Omron Corporation |
| 描述 | Timers TIMER REPEAT CYCLE Electromechanical Relay DPDT 5A 24VDC 24VAC Plug-In RELAY REPEAT CYCLE ANLG 24V Time Delay Relay Omron H3CR-F8 AC/DC24, 0.05 s to 30 h 8-Pin Connector DPDT 250 V ac, 30 V dc 欧姆龙(OMRON) 定时器 Omron H3CR-F8 AC100-240 单 计时继电器, 0.05 s → 30 h, 2触点, DPDT, 24 V 交流/直流 H3CR 系列 |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电路 | DPDT (2 Form C) | 延迟时间 | 0.05 Sec ~ 30 Hrs |
| 输出类型 | Mechanical Relay | 量程（°/s） | 0.05 s → 30 h |
| 最大电压 | 250 V ac, 30 V dc | 工作模式 | Flicker OFF |
| 可见输出 | No | 额定电压 | 30 |
| 推频（MHz/V） | No | 关断延迟时间 | 小时，秒 |
| 供电电压 | 24VAC/DC | 供电类型 | External |
| 钳位电压 | 20.4VDC|20.4VAC | 二极管配置 | Yes |
| 最大额定电流 | 5 A | 最小输入电压 | 250 |
| 开关功能/额定值 | DPDT | 启动定时方式 | Input Voltage |
| 触点额定值 @ 电压 | 5A @ 250VAC | ||
机械参数
| 密封 | Unsealed | 深度 | 84mm |
| 宽度 | 48mm | 高度 | 70.4 |
| 长度 | 48mm | 触点形式 | 2 Form C |
| 安装类型 | Plug-In | 端子类型 | 8-Pin Connector |
| 连接器类型 | 8 引脚连接器 | 总长度 | 48 |
| 端接样式 | 8-Pin Circular Plug | 触点数 | 8 |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | Time Delay Relay | 系列 | H3CR |
| 功能 | Repeat Cycle, Twin Timer | 继电器类型 | Time Delay |
| CAD图纸 | 3D CAD 模型 | 开关类型 | DPDT |
| 定时器数量 | 单 | 宏单元数量 | Single |
| 定时调节方式 | Hand Dial | ||
环境参数
| 工作范围 | 0.05 s → 30 h | 工作温度 | +55°C |
