点击放大查看
XS5G-D423
| 制造商 | |
| 描述 | Conn M12 Circular M 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS W/PINS Circular Metric Connectors Plug Straight 4pin Solder for 4mmCable WATERPROOF SENSOR CONNECTOR |
| 分类 |
商业参数
| 交货时间 | 96 Days | 其他名称 | XS5GD423 |
| 子类别 | Connector Circular | 零件号别名 | 1825524 684412 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366990 | ||
电气参数
| 额定电压 | 250VDC | 最大额定电流 | 4A |
机械参数
| 高度 | 30.45 | 重量 | 0 |
| 直径 | 14.9 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 触头类型 | 4Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 触头材料 | Phosphor Bronze |
| 总长度 | 37.7 | 第一触头极性 | M |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | M12-4 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 接触镀层厚度 | 16µin (0.40µm) | 第一连接器安装类型 | :Free Hanging |
产品信息
| 类型 | M12 Circular | 连接器性别 | PL |
| 系列 | XS5 | 产品子类型 | Connectors |
| 附件类型 | :Straight Sensor Connector | 有铅工艺兼容 | :Yes |
| 适用产品/相关产品 | :Omron Sensors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -25°C ~ 70°C |
文档与媒体
相关型号
XS5C-D423
omron electronics
Conn M12 Circular F 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN RCPT STRAIGHT 4POS W/SKTS Circular Metric Connectors Socket Straight 4Pin Solder, 4mm Dia Cbl WATERPROOF SENSOR CONNECTOR
XS5C-D4S7
omron electronics
Conn M12 Circular F 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN SOCKET 4POS STR SCREW-ON Circular Metric Connectors Socket Straight 4Pin Screw-on 8mm Dia Cbl
XS5C-D421
omron electronics
Conn Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN RCPT STRAIGHT 4POS W/SKTS Circular Metric Connectors Socket Straight 4Pin Solder, 6mm Dia Cbl WATERPROOF SENSOR CONNECTOR SOCKET;SOCKETSTRGHT4PINSLDER6MDIACBL
XS5C-D4S2
omron electronics
Conn M12 Circular F 4 POS Crimp RA Cable Mount 4 Terminal 1 Port CONN SOCKET RT ANG 4POS SEALED Circular Metric Connectors Socket, Angled 5 Pin Screw-on 6mm Dia Cbl WATERPROOF SENSOR CONNECTOR Circular Connector Connector Type: Receptacle, Female Sockets Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line), Right Angle Fastening Type: Bayonet Lock
XS5C-D422
omron electronics
Conn M12 Circular F 4 POS Solder RA Cable Mount 4 Terminal 1 Port CONN RCPT RT ANG 4POS W/SKTS Circular Metric Connectors Socket, Angled 5 Pin Solder, 6mm Dia Cbl
XS5C-D4S1
omron electronics
Conn Circular SKT 4 POS Screw ST Cable Mount 4 Terminal 1 Port Circular Metric Connectors Socket Straight 4Pin Screw-on 6mm Dia Cbl CONN SOCKET STRAIGHT 4POS SEALED 欧姆龙(OMRON) 其它传感器附件 Circular Connector Connector Type: Receptacle, Female Sockets Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line) Fastening Type: Bayonet Lock
XS2Z-13
Omron Electronics
Circular Metric Connectors Connector COVER DUST M12 FOR CONNECTORS Connector Accessories Dust Cover
XS5C-D4C1
omron electronics
Conn M12 Circular F 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN SOCKET 4POS STR CRIMP Circular Metric Connectors Socket Straight 4Pin Crimp, 6mm Dia Cbl
XS2Z-11
omron electronics
Connector Accessories Water Resistive Cover COVER WATER-RESIST M12 FOR CONN Circular Metric Connectors Connector 欧姆龙(OMRON) 其它传感器附件

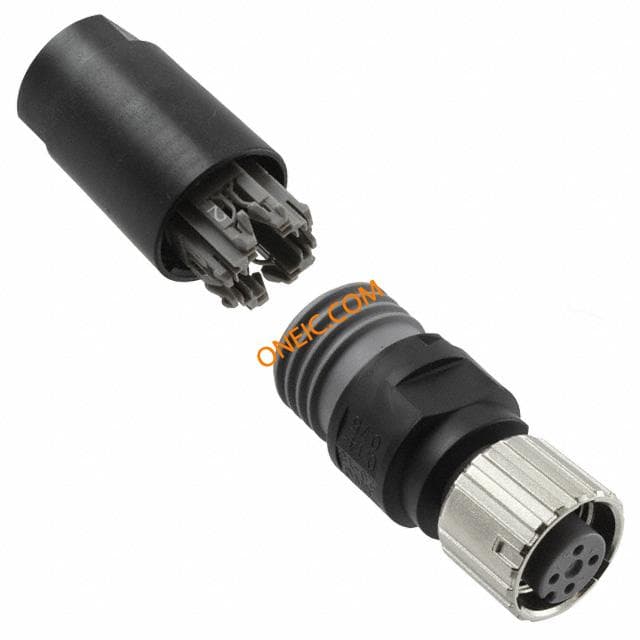

XS5C-D418
