点击放大查看

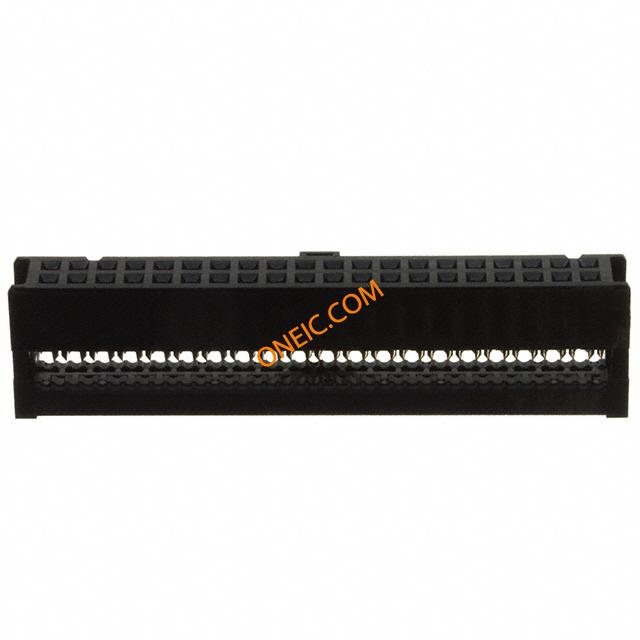

XG4M-4030
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング OpenCoverSocket 40P NoStrainRelief 1Polr Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount CONN SOCKET 40POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 40P NoStrainRelief 1Polr 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 95 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1751297 427564 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 250 V | 接触电阻 | 20 |
| 最大额定电流 | 1 A | 绝缘电阻 | 1000 MOhms |
| 最小输入电压 | 300VAC | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 55.4 | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 40 | 位数 | 40 |
| 接触镀层厚度 | 5.9µin (0.15µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | XG4 | 产品特性 | Feed Through, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
