点击放大查看

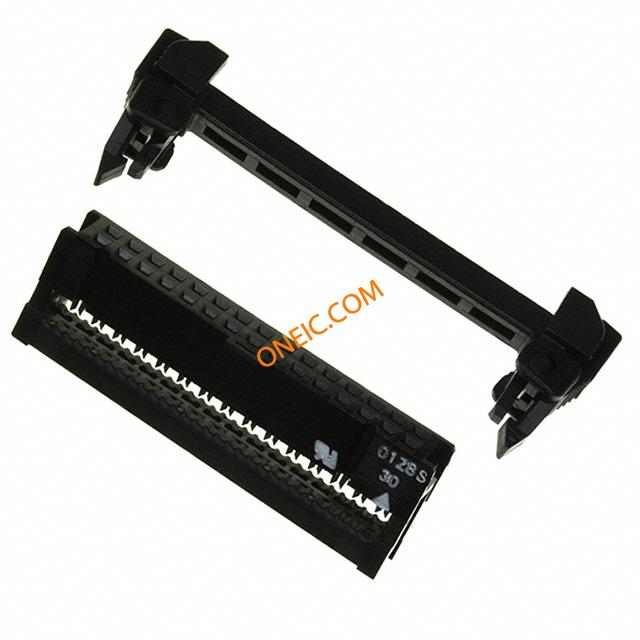

XG4M-3030-T

制造商	Omron Corporation
描述	Headers & Wire Housings Socket+StrainRelief Set 30Pin 1Polar CONN SOCKET 30POS W/ STRAIN RLF Conn IDC Connector SKT 30 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	89 Days	子类别	Connector Headers and PCB Receptacles
零件号别名	1756263 427547	产品类别	Headers & Wire Housings
标准包装数量	70	工厂包装数量	70

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压	250 V	最大额定电流	1 A
绝缘电阻	1000 MOhms

机械参数

颜色	Black	间距	0.100" (2.54mm)
包装方式	Bulk	导线类型	Ribbon Cable
导线线规	28 AWG	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold
安装样式	Cable	排数	2
触头材料	Phosphor Bronze	壳体材料	Polybutylene Terephthalate (PBT)
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	30
位数	30	接触镀层厚度	5.9µin (0.15µm)

产品信息

类型	Receptacle	系列	XG4
产品特性	Feed Through; Polarizing Key, Strain Relief	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

- 55 C to + 105 C

文档与媒体

PDF 文档

How to Read Date Codes

PDF 文档

XG4_0913.pdf

PDF 文档

en-xg4.pdf
