点击放大查看

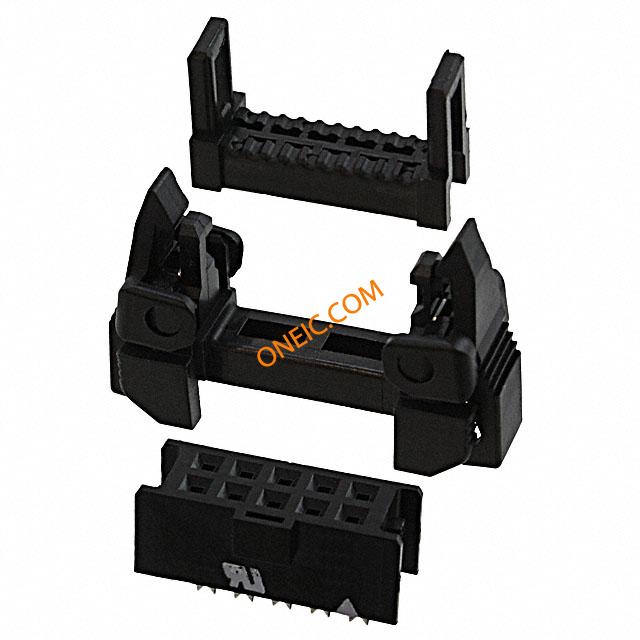

XG4M-1030-U
| 制造商 | |
| 描述 | Headers & Wire Housings Socket+NoLockStrain ReliefSet 10Pin 1Plr CONN SOCKT 10POS STRN RLF W/LOCK Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 95 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1751367 385281 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 180 | 工厂包装数量 | 180 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 1 A |
| 绝缘电阻 | 1000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 28 AWG | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 紧固类型 | Latch Lock/Eject Hooks | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 电缆端接方式 | IDC | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 系列 | XG4 | 产品特性 | Feed Through; Polarizing Key, Strain Relief |
| 产品子类型 | Receptacles / Sockets - Housings | 行业别名 | XG4M-1030-U |
环境参数
| 工作温度 | - 55 C to + 105 C | ||
