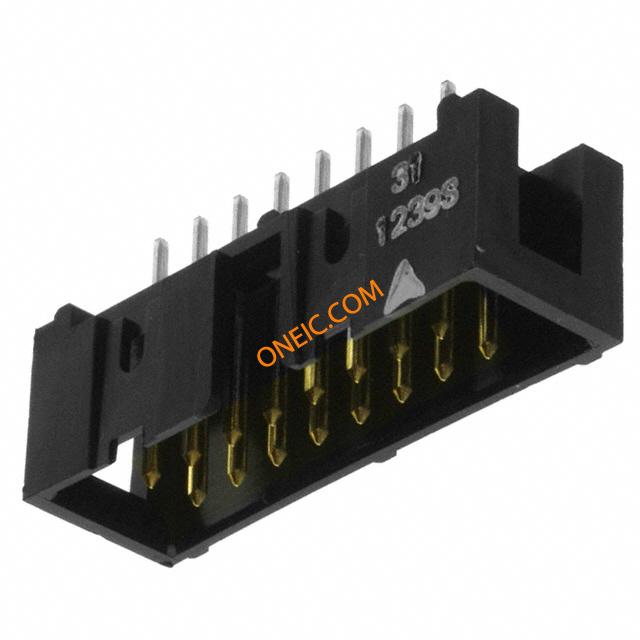

XG4C-1631
| 制造商 | |
| 描述 | Headers & Wire Housings MIL BoxType Plug 16P Straight 1Polarize CONN PLUG 16POS 3A 300V STRT DIP Conn Shrouded Header PL 16 POS 2.54mm Solder ST Thru-Hole 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1753115 385258 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 110 | 工厂包装数量 | 110 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 300 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Through Hole | 触点数 | 16 |
| 位数 | 16 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Shrouded | 系列 | XG4 |
| 产品子类型 | Headers | 行业别名 | XG4C-1631 |
| 加载位置数 | All | ||
文档与媒体
相关型号
XG4H-1631
Omron Electronics
Board to Board & Mezzanine Connectors BtoB Socket 16Pin Straight 1Polarize CONN SOCKET 16POS STRAIGHT PCB 欧姆龙(OMRON) 其它传感器附件
XG5M-1632-N
Omron Electronics
ヘッダ & ワイヤハウジング IDC 2Row Socket 16P Size1 1PolarizeGuide Conn Housing SKT 16 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 16POS AWG24 Headers & Wire Housings IDC 2Row Socket 16P Size1 1PolarizeGuide WIRE-BOARD CONN, SOCKET, 16POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG4M-1630-U
Omron Electronics
Headers & Wire Housings Socket+NoLockStrain ReliefSet 16Pin 1Plr Conn IDC Connector SKT 16 POS 2.54mm IDT RA Cable Mount CONN SOCKT 16POS STRN RLF W/LOCK 欧姆龙(OMRON) 其它传感器附件
XG5M-1635-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 16P Size2 1PolarizeGuide CONN IDC SOCKET 16POS AWG28-26 欧姆龙(OMRON) 其它传感器附件
XG4M-1630
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 16P NoStrainRelief 1Polr CONN SOCKET 16POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 16P NoStrainRelief 1Polr Conn IDC Connector SKT 16 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG4M-1630-T
Omron Electronics
Headers & Wire Housings Socket+StrainRelief Set 16Pin 1Polar Conn IDC Connector SKT 16 POS 2.54mm IDT RA Cable Mount CONN SOCKET 16POS W/ STRAIN RLF WIRE-BOARD CONN, SOCKET, 16POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件

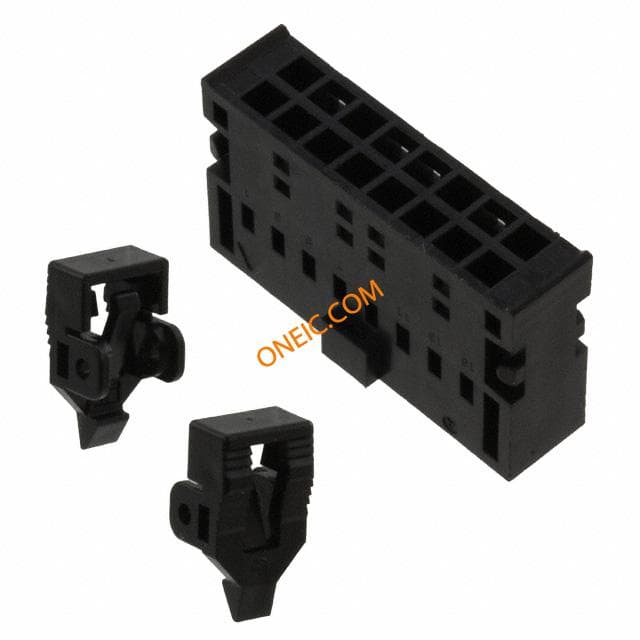

XG5N-161-U
