点击放大查看

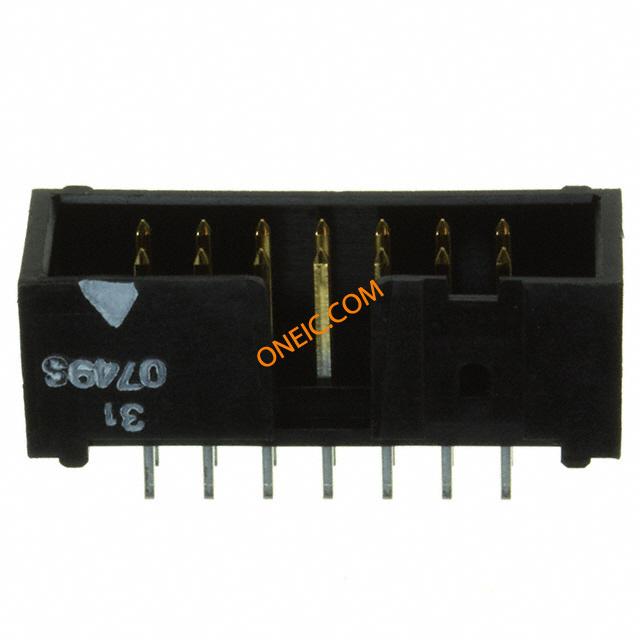

XG4C-1431
| 制造商 | |
| 描述 | Headers & Wire Housings MIL BoxType Plug 14P Straight 1Polarize Conn Shrouded Header PL 14 POS 2.54mm Solder ST Thru-Hole CONN PLUG 14POS 3A 300V STRT DIP WIRE-BOARD CONNECTOR PLUG, 14POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1751059 427494 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 120 | 工厂包装数量 | 120 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366930 | ||
电气参数
| 量程（°/s） | :OMRON - XG4 Series | 额定电压 | 300 V |
| 接触电阻 | 20 | 最大额定电流 | 3 A |
| 最小输入电压 | 300VAC | ||
机械参数
| 颜色 | Black | 深度 | 8.5 |
| 间距 | 0.100" (2.54mm) | 高度 | 9 |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 25.1 | 端接样式 | Through Hole |
| 触点数 | 14 | 接触件端接 | :Through Hole Vertical |
| 位数 | 14 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | PL |
| 系列 | XG4 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
XG4H-1431
omron electronics
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 14POS STRAIGHT PCB Board to Board & Mezzanine Connectors BtoB Socket 14Pin Straight 1Polarize 欧姆龙(OMRON) 其它传感器附件
XG4M-1430
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 14P NoStrainRelief 1Polr CONN SOCKET 14POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 14P NoStrainRelief 1Polr Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG4M-1430-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 14Pin 1Polar Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount CONN SOCKET 14POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 14Pin 1Polar 欧姆龙(OMRON) 接近开关
XG5M-1432-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 14P Size1 1PolarizeGuide Conn Housing SKT 14 POS 2.54mm Crimp ST CONN IDC SOCKET 14POS AWG24 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG5M-1435-N
Omron Electronics
ヘッダ & ワイヤハウジング IDC 2Row Socket 14P Size2 1PolarizeGuide CONN IDC SOCKET 14POS AWG28-26 欧姆龙(OMRON) 其它传感器附件
XG4M-1430-U
omron electronics
Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount CONN SOCKT 14POS STRN RLF W/LOCK Headers & Wire Housings Socket+NoLockStrain ReliefSet 14Pin 1Plr 欧姆龙(OMRON) 其它传感器附件

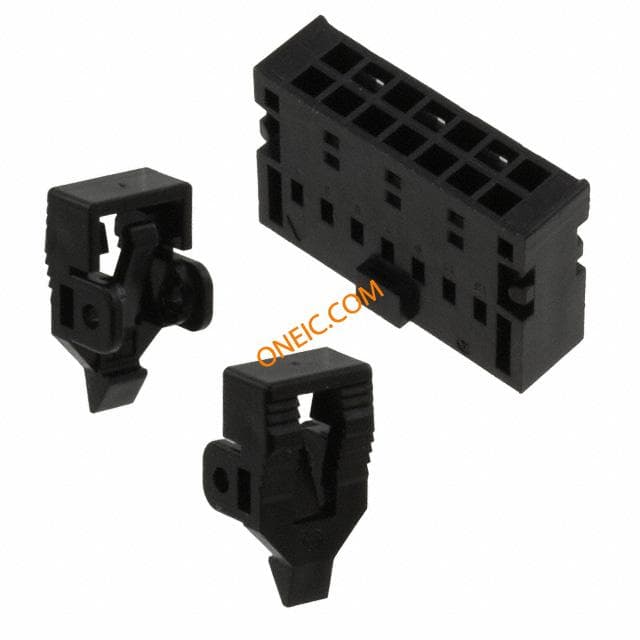

XG5N-141-U
