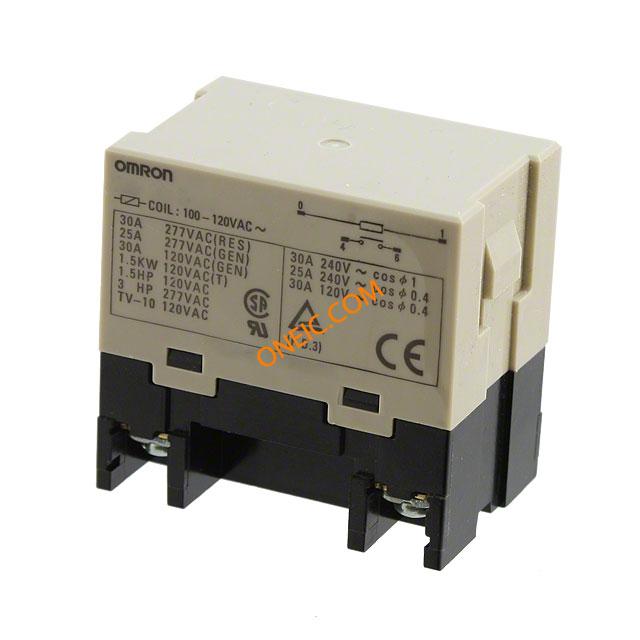

G7L-1A-B-CB-AC100/120BYOMI
| 制造商 | |
| 描述 | RELAY GEN PURPOSE SPST 30A 120V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 20 | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 2.5 VA |
| 线圈电流 | 20.4mA | 释放时间 | 30ms |
| 线圈电阻 | 5.26 kOhms | 供电电压 | 120VAC |
| 开关电压 | 250VAC - Max | Vgs(th)（最大）@ Id | 18 VAC |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 75 VAC | 触点额定电流 | 30A |
机械参数
| 包装方式 | Bulk | 触点形式 | SPST-NO (1 Form A) |
| 安装类型 | Chassis Mount | 触头材料 | Silver Tin Indium (AgSnIn) |
| 端接样式 | Screw Terminal | ||
产品信息
| 产品特性 | Insulation - Class B | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 30ms | 工作温度 | -25°C ~ 60°C |
文档与媒体
PDF 文档
