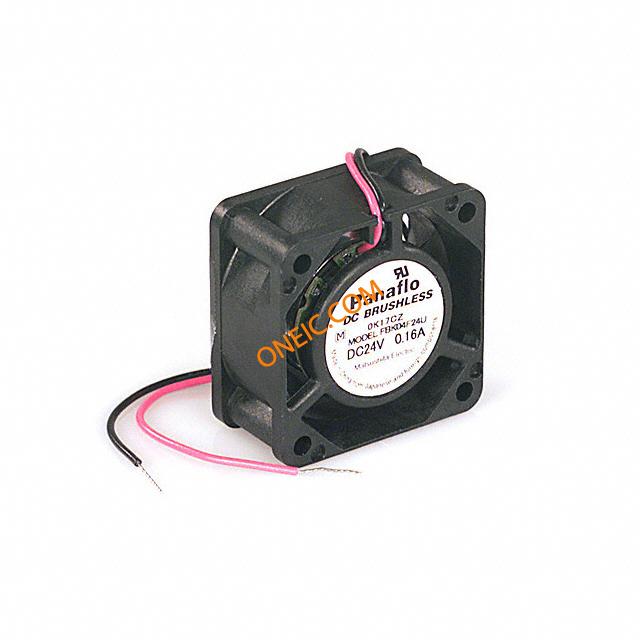

FBK04F24U
| 制造商 | MinebeaMitsumi Inc. |
| 描述 | FAN 24VDC 2.4W PANAFLOW FBK SRS |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 365 Days | 子类别 | Blowers and Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 噪声 | 42 dB(A) | 功率（瓦） | 2.40W |
| 电压范围 | 14 ~ 27.6VDC | 额定电压 | 24VDC |
| 最大额定电流 | 0.100A | ||
机械参数
| RPM | 9500 RPM | 重量 | 0.088 lb (39.92g) |
| 风量 | 9.2 CFM (0.260m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.472 in H2O (117.6 Pa) | 刀片材料 | Plastic |
| 框架材料 | Plastic | 尺寸/外形 | Square - 40mm L x 40mm H x 20mm W |
环境参数
| 工作温度 | 14 ~ 158°F (-10 ~ 70°C) | ||
