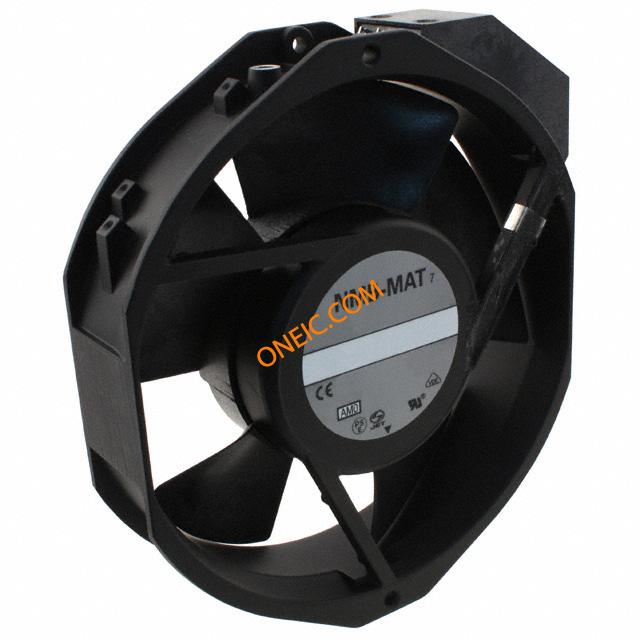

5915PC-12T-B10-A00
| 制造商 | MinebeaMitsumi Inc. |
| 描述 | AC Fan Ball Bearing 115V 0.16A/0.19A 16W/18W 50Hz/60Hz 1400RPM/1650RPM 84.7CFM/102.3CFM 35dB/38dB Flange Mount FAN AC AXIL 115V 150X172X38 1650 |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | Blowers and Fans |
| 标准包装数量 | 15 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 噪声 | 38 dB | 转速 | Counter Clockwise |
| 频率 | 50/60 Hz | 最大功率 | 18.0W |
| 噪声系数 | 35/38 dB | 功率（瓦） | 18.0W |
| 额定功率 | 16/18 W | 额定电压 | 115VAC |
| 输出电流 | 0.16|0.19 | 供电电流 | 0.16/0.19 A |
| 最大额定电流 | 0.190A | 噪声系数（dB典型值 @ f） | 38 dB |
机械参数
| RPM | 1650 RPM | 尺寸 | Rectangular/Rounded - 172mm L x 150mm H x 38mm W |
| 深度 | 172 mm | 高度 | 38 mm |
| 重量 | 1.8 lbs (816.5g) | 风量 | 102.3 CFM (2.90m³/min) |
| 风扇类型 | Tubeaxial | 端接方式 | Terminals |
| 轴承类型 | Ball | 安装类型 | Flange Mount |
| 安装样式 | Flange | 操作力 | 0.243 in H2O (60.7 Pa) |
| 静压 | 0.243 in H2O (60.7 Pa) | 壳体材料 | Aluminum |
| 总长度 | 150 mm | 刀片材料 | Polycarbonate (PC), Fiberglass Reinforced |
| 框架材料 | Aluminum | 最大压力 | 43.1Pa|60.7Pa |
| 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 38mm W | ||
产品信息
| 类型 | AC Fan | 系列 | 5915PC |
环境参数
| 额定寿命 | 50000 hrs @ 25°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
| 结工作温度 | 70C | ||
