首页产品分类硬件与散热解决方案直流风扇鼓风机4715MS-12T-B50-A00

点击放大查看

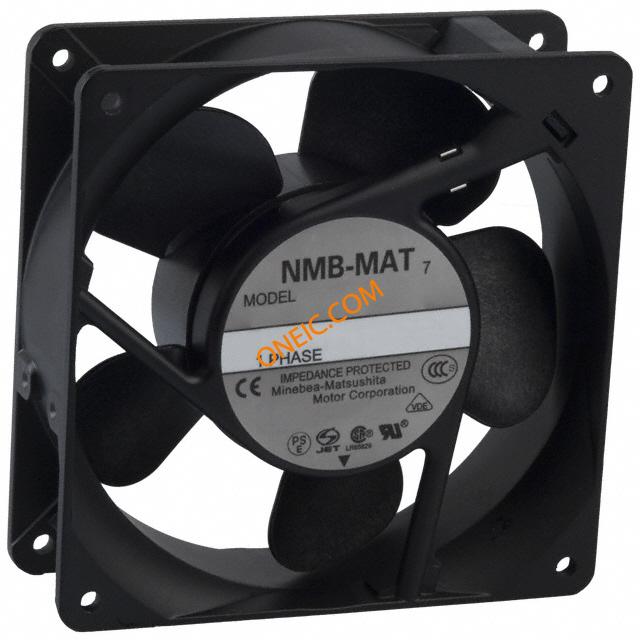

4715MS-12T-B50-A00

制造商	MinebeaMitsumi Inc.
描述	AC Fan Ball Bearing 115V 0.25A/0.21A 15.5W/14.5W 50Hz/60Hz 2600RPM/2900RPM 88.2CFM/102CFM 37dB/41dB Flange Mount FAN AC AXIAL 115V 119X38 2900RPM AC Fan Ball Bearing 115V 0.25A/0.21A 15.5W/14.5W 50Hz/60Hz 2600RPM/2900RPM 88.2CFM/102CFM 37dB/41dB Flange Mou FAN, 119X119X38MM, 115VAC
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

交货时间	112 Days	子类别	Blowers and Fans
标准包装数量	20

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	84145920	抗辐射加固	No
材料阻燃等级	:UL94-V0

电气参数

噪声	41 dB	转速	Counter Clockwise
频率	50/60 Hz	量程（°/s）	:2600rpm
噪声系数	37/41 dB	功率（瓦）	14.5W
额定功率	15.5/14.5 W	额定电压	115VAC
输出电流	0.25\|0.21	供电电流	0.25/0.21 A
供电电压	:115VAC	供电类型	:Terminals
最大额定电流	0.210A	平均正向功率	:15.5W

机械参数

RPM	2900 RPM	深度	119 mm
宽度	:119mm	高度	38 mm
重量	1.2 lbs (544.3g)	风量	102.0 CFM (2.88m³/min)
直径	Not Required mm	风扇类型	Tubeaxial
材料（通用）	:Polycarbonate	流量 (CFM)	:2.9m³/min
流量（SCFM）	:102cu.ft/min	端接方式	Terminals
轴承类型	Ball	高度（最大）	:119mm
安装类型	Flange Mount	端子类型	:Terminals
安装样式	Flange	压力（PSI）	:64.3Pa
静压	0.306 in H2O (76.4 Pa)	壳体材料	Aluminum
总长度	119 mm	刀片材料	Polycarbonate (PC), Fiberglass Reinforced
框架材料	Aluminum	最大压力	0.259inH2O\|0.306inH2O
尺寸/外形	Square - 119mm L x 119mm H x 38mm W	外壳与棱镜材料	:Aluminium

产品信息

类型	AC Fan	系列	:4715MS
功能	:AC

环境参数

额定寿命	50000 hrs @ 25°C	工作温度	14 ~ 158°F (-10 ~ 70°C)
结工作温度	70C

文档与媒体

在线文档

Fan Motor Numbering System 13/Dec/2013

PDF 文档

AC Fan Part Numbering Guide

PDF 文档

4715MS Series
