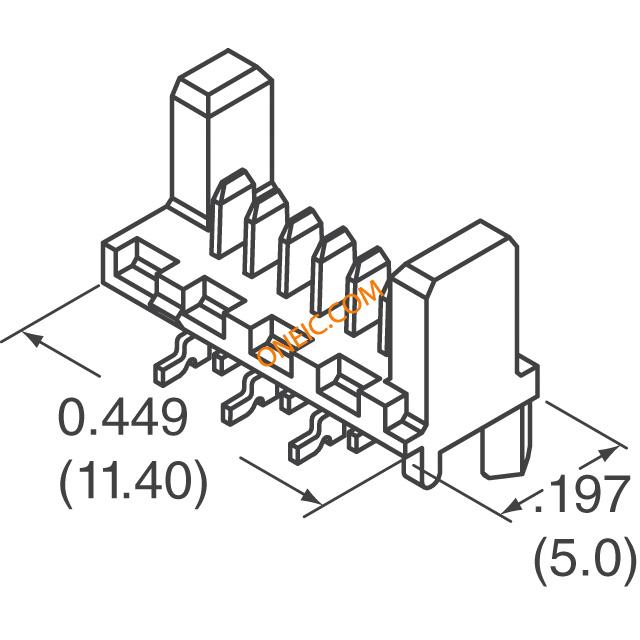

点击放大查看
90814-0806
| 制造商 | Molex, LLC |
| 描述 | Conn Ribbon Cable Connector HDR 6 POS 2.54mm Solder ST SMD Tube CONN HEADER 6POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 6w Headers & Wire Housings 1.27MM 6P VERT HDR LO-PRO SMT SN HEADER, PICOFLEX, SMT, 6WAY Straight header SMD 6P, 90814-0806, Molex Molex PICOFLEX 系列 6路 1.27mm节距 公 IDC 连接器 , 表面安装 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0908140806 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 6624 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :MOLEX - Picoflex 90814 Series | 额定电压 | 250 V ac/dc |
| 接触电阻 | 15 | 最大额定电流 | 1.2A |
| 最小输入电压 | 250VDC|250VAC | ||
机械参数
| 颜色 | Natural | 深度 | 6.9 |
| 间距 | 0.050" (1.27mm) | 高度 | 5.15 |
| 重量 | 0.00032 | 包装方式 | Tube |
| 端接方式 | Solder | 触头类型 | Blade Pin |
| 引脚间距 | :1.27mm | 外壳颜色 | Beige |
| 安装类型 | Straight | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Nickel | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon 4/6 |
| 总长度 | 11.4 | 端接样式 | SMD |
| 第一触头极性 | HDR | 触点数 | 6 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 6 |
| 接触长度 - 配合 | 0.085" (2.15mm) | 接触镀层厚度 | 118.1µin (3.00µm) |
产品信息
| 类型 | Ribbon Cable Connector | 连接器性别 | Male |
| 系列 | 90814 | 产品特性 | Board Guide |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | +105°C | ||
