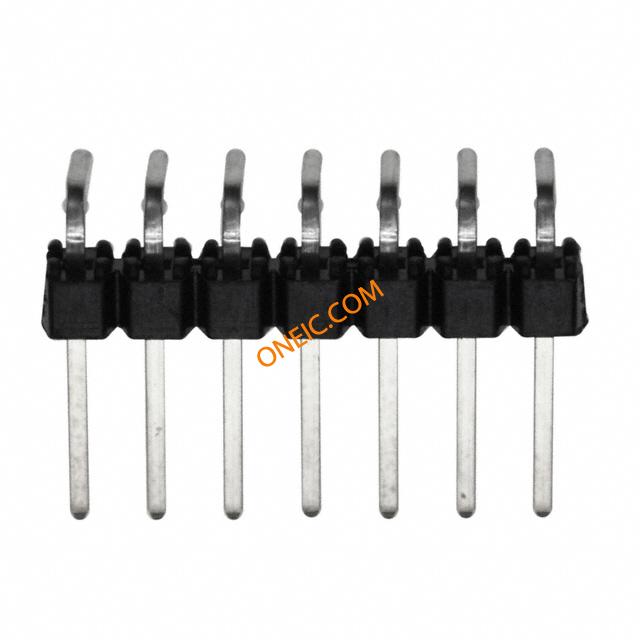

90121-0767
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 7POS .100" R/A GOLD Headers & Wire Housings 2.54MM CGRIDIII HDR 7P R/A SR SEL AU Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tray |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901210767 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 350 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 7 | 位数 | 7 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 90121 | 产品子类型 | Headers |
| 加载位置数 | All | ||
