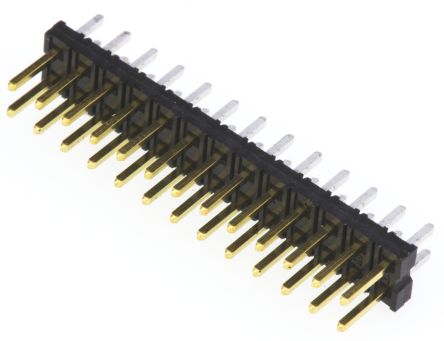

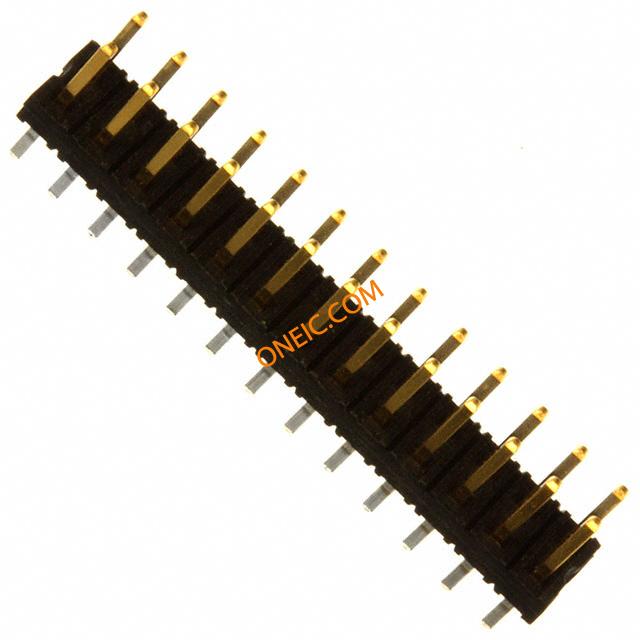

87758-2616
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 26 POS 2mm Solder ST Thru-Hole Tray CONN HEADER 26POS 2MM VERT GOLD Molex 87758 Series 2mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings VERT HEADER 26P Lead Free Molex MILLI-GRID 系列 2mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0877582616 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Tray | 方向 | 直 |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 触点数 | 26 |
| 位数 | 26 | 接触长度 - 配合 | 0.157" (4.00mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 87758 | 覆盖范围 | 无覆盖 |
| 产品子类型 | Headers | 基础产品编号 | 87758 |
| 加载位置数 | All | ||
文档与媒体
相关型号
0791077212
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 26CKT
0791091062
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 26CKT SMD
0791077012
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 26POS
0791077262
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 26CKT
0791098662
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 26CKT
0791091012
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 26CKT SMD
0791098412
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 26CKT
0791081012
molex
Conn FFC/FPC Connector SKT 26 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 26CKT
0791091262
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 26CKT

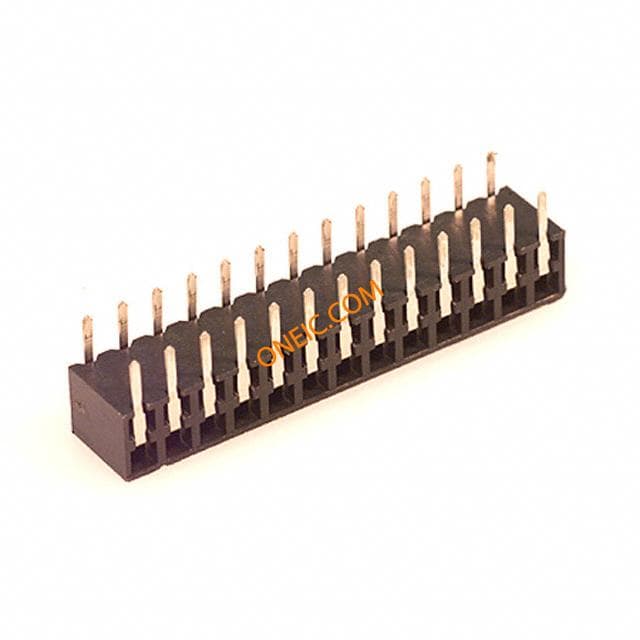

87264-2652
molex
Conn Socket Strip RCP 26 POS 2mm Solder RA Thru-Hole Tube CONN RECEPT 2MM 26POS SIDE ENTRY Headers & Wire Housings 2MM RECEPT. 26 CKT Side Entry

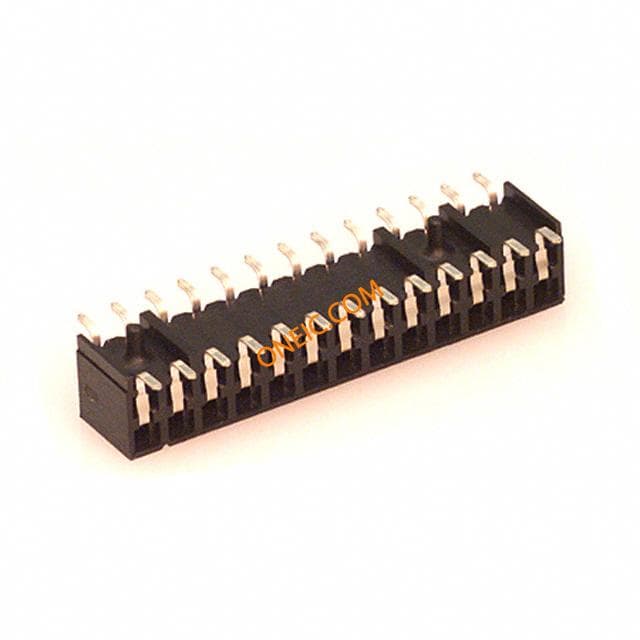

87368-2624
