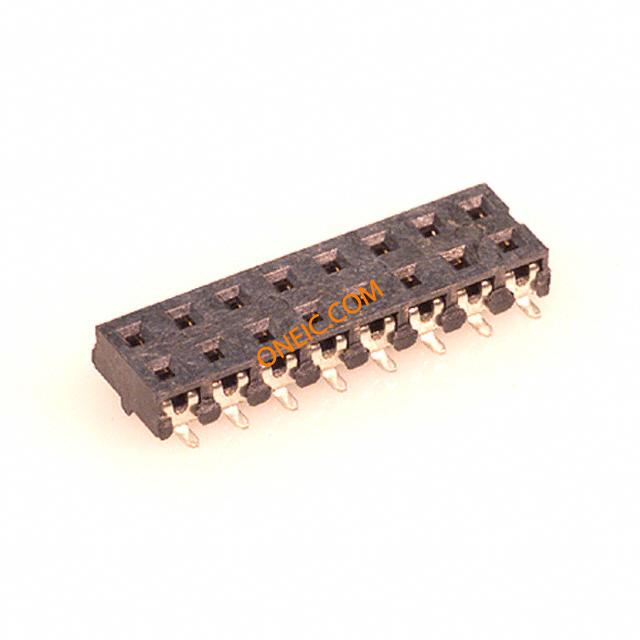

87340-1624
| 制造商 | Molex, LLC |
| 描述 | Conn Socket Strip RCP 16 POS 2mm Solder ST SMD Tube CONN RECEPT 16POS 2MM LOPRO SMD 2.00mm Pitch Milli-Grid™ Receptacle, Surface Mount (Very Low Profile), Top Entry, with Locating Pegs, 0.38µm Gold (Au) Plating, 16 Circuits, ... 2.00mm Pitch Milli-Grid™ Receptacle, Surface Mount (Very Low Profile), Top Entry, with Locating Pegs, 0.38µm Gold (Au) Plating, 16 Circuits, Lead-Free, Tube, Black |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Surface Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触点数 | 16 | 位数 | 16 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 产品特性 | Board Guide | 加载位置数 | All |
