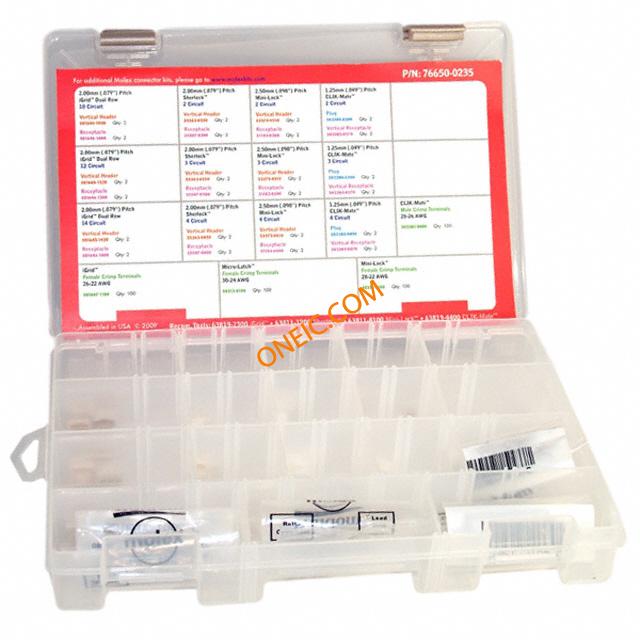

76650-0235
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,2,3,4POS 0.5-2A,1.5-2A,1A,3A THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,VERTICAL HEADER 1.25MM PITCH 125V,250V,50V 22-26,22-28,28-26,24-30 WIRE SIZE KIT CONN MULTI WIRE-BOARD 448PC Headers & Wire Housings Off the Board Kit PositiveLoc Solution |
| 分类 |
商业参数
| 商标名 | iGrid | 标准包装规格 | 1 |
| 零件号别名 | 0766500235 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 125 V, 250 V, 50 V | 最大额定电流 | 500 mA |
机械参数
| 包装方式 | Plastic Box with Bin Guide | 导线线规 | 26-22, 28-22, 28-26, 30-24 |
| 安装类型 | Straight | 端接样式 | SMD, Through Hole |
| 第一触头极性 | Pin (Male), Socket (Female) | ||
产品信息
| 系列 | 76650 | 值 | 448 pcs - Assorted 2 ~ 4, 10, 12, 14 Header, Housing, 24 ~30 AWG Contacts |
| 套件类型 | Rectangular - Contact, Header, Housing | 产品子类型 | Connector Kits |
