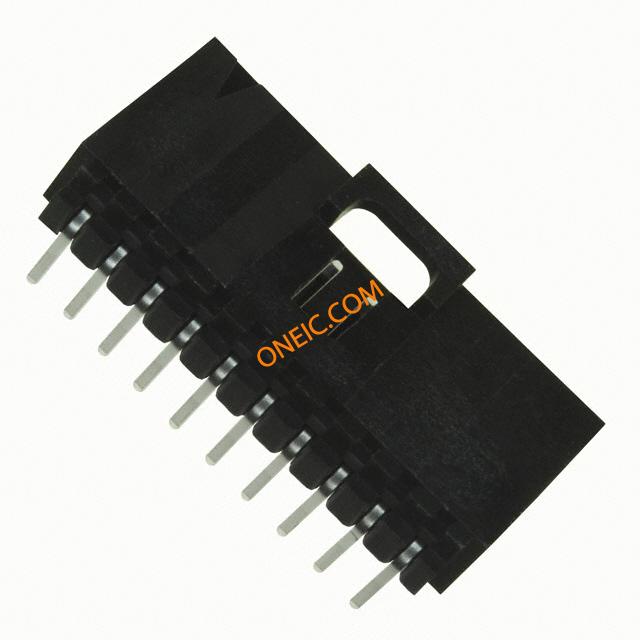

70553-0044

制造商	Molex, LLC
描述	Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 10POS .100 TIN Headers & Wire Housings 2.54MM HDR 10 CKT Right Angle
分类	连接器解决方案板对板连接器板对板连接器

商业参数

商标名	SL	零件号别名	0705530044
产品类别	Headers & Wire Housings	标准包装数量	Rail / Tube
工厂包装数量	760

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

3 A

机械参数

颜色	Black	间距	2.54 mm
包装方式	Tube	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole, Right Angle
连接器类型	Header, Shrouded	接触镀层	Tin Over Nickel
排数	1	触头材料	Phosphor Bronze
壳体材料	Polyester	端接样式	Through Hole
触点数	10	位数	10
接触长度 - 配合	0.240" (6.10mm)	接触镀层厚度	150µin (3.81µm)

产品信息

类型	Shrouded Header	连接器性别	HDR
系列	70553	产品子类型	Headers
加载位置数	All

文档与媒体

PDF 文档

Single Row (SL) Prod Spec
