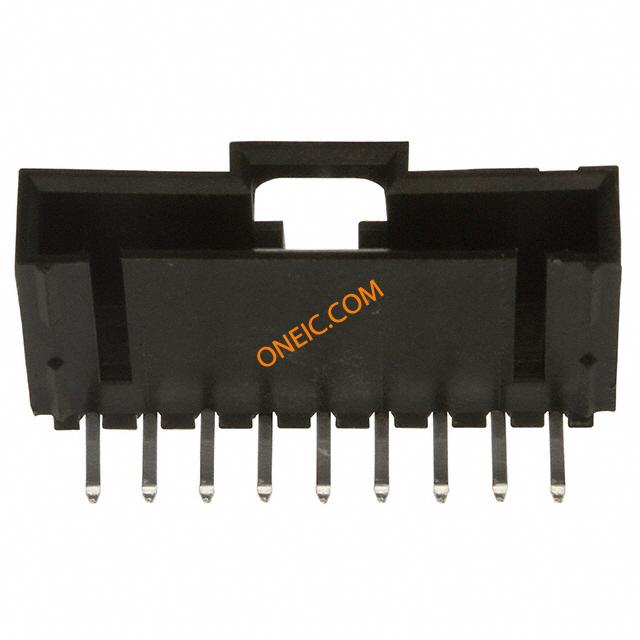

70553-0043
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 9POS .100 TIN Molex 70553 Series 2.54mm Pitch 9 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM HDR 9 CKT Right Angle Molex SL 系列 2.54mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0705530043 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 840 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 触点数 | 9 | 位数 | 9 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 70553 | 覆盖范围 | 覆盖 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Headers |
| 基础产品编号 | 70553 | 加载位置数 | All |
