70247-2652
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 26POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 26Ckt |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0702472652 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 512 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2.5 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 26 | 位数 | 26 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 70247 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
15-44-3213
Molex
Headers & Wire Housings C-GRID PCB CONNECTOR CONN RECEPT 26POS .100 VERT PCB
39-51-2263
Molex
Board to Board & Mezzanine Connectors QF50 DUAL RECPT 26 vertical CONN RCPT 26POS 2.54MM IDC W/POL
39-51-2260
Molex
Headers & Wire Housings Obsolete CONN RCPT 26POS 2.54MM IDC W/POL
15-44-4513
Molex
Headers & Wire Housings Obsolete CONN RECEPT 26POS .100 VERT PCB
15-45-1313
Molex
Headers & Wire Housings Obsolete CONN RECEPT 26POS .100 VERT PCB

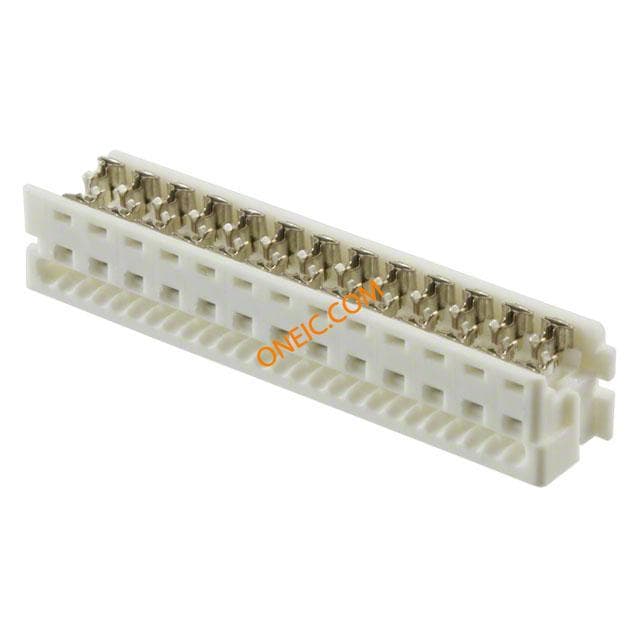

90327-0326
molex
Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 26POS 1.27MM TIN 26 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT SN CONNECTOR, PICOFLEX, 26WAY Female connector 26P, 90327-0326, Molex Molex PICOFLEX 系列 2行 26路 1.27mm节距 直角 电缆安装 母 IDC 连接器
90327-3326
Molex Connector Corporation
CONN RECPT IDT 26POS 1.27MM GOLD 26 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT AU Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, 26WAY Molex PICOFLEX 系列 2行 26路 1.27mm节距 直角 电缆安装 母 IDC 连接器

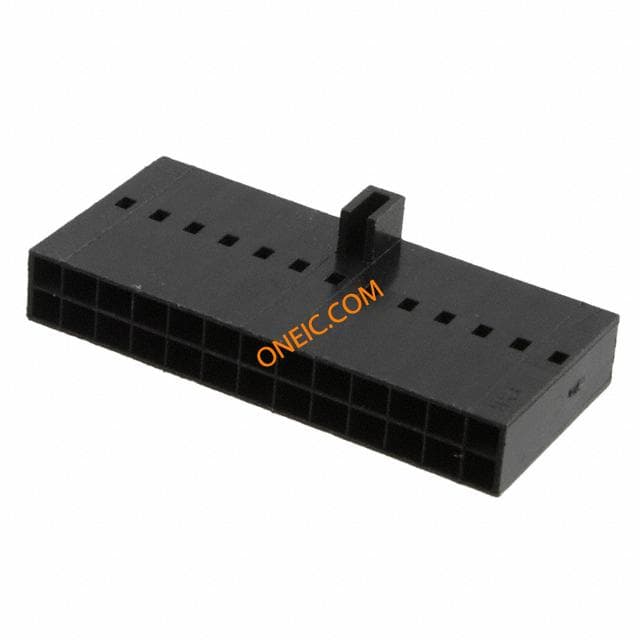

22-55-2262
