点击放大查看

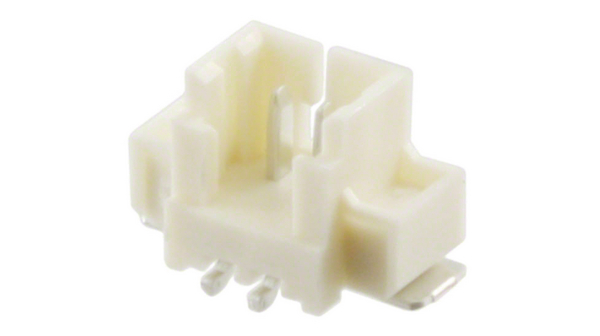

53398-0271
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 2 POS 1.25mm Solder ST SMD Embossed T/R Molex 53398 Series 1.25mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings VERTICAL HDR SMT 2P CONNECTOR, HEADER, SMT, 1.25MM, 2WAY WIRE-BOARD CONNECTOR HEADER 2POS, 1.25MM WIRE-BOARD CONNECTOR HEADER 2POS, 1.25MM, FULL REEL .049 Pitch PicoBlade Header, Surface Mount, Vertical, Lead-free, 2 Circuits .049PitchPicoBladeHeader,SurfaceMount,Vertical,Lead-free,2Circuits Pin header SMD 1.25 mm Poles 2 PicoBlade, 53398-0271, Molex Molex PICOBLADE 系列 1.25mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 1A , 表面安装 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0533980271 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Cut Tape |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :MOLEX - PicoBlade 53398 Series | 额定电压 | 125 V |
| 工作电压 | :125V | 击穿电压 | :250V |
| 最大额定电流 | 1A | 绝缘电阻 | :100Mohm |
机械参数
| 深度 | :3.7mm | 间距 | 1.25 mm |
| 长度 | :4.7mm | 重量 | 0.01 |
| 包装方式 | Reel | 端接方式 | Solder |
| 安装类型 | Straight | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 端接样式 | SMD |
| 触点数 | 2 | 接触件端接 | :Surface Mount Vertical |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 53398 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | ||
环境参数
| 工作温度 | :85°C | ||
文档与媒体
PDF 文档
