51191-0300
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 3 POS 2.5mm Crimp ST Bag Headers & Wire Housings 2.5 W/B HSG 2.5 W/B HSG Conn Housing F 3 POS 2.5mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:3; 2.5mm; for cable; Pin layout:1x3 Molex 2.5mm 节距 3 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 零件号别名 | 0511910300 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 20000 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 深度 | 10.7mm | 间距 | 2.5 mm |
| 宽度 | 6.6mm | 长度 | 10mm |
| 重量 | 0.37 g | 方向 | 直 |
| 柱间距 | 2.5mm | 安装类型 | Straight |
| 连接器类型 | female | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Nylon |
| 包装数量 | 1000 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 位数 | 3 |
| 第一连接器安装特征 | 1x3 | ||
产品信息
| SPG | 1000 | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 51191 |
| 产品子类型 | Receptacles / Sockets - Housings | 单元数量 | 1 |
| 基础产品编号 | 51191 | 适用产品/相关产品 | 压接接线端子 50802 |
文档与媒体
相关型号

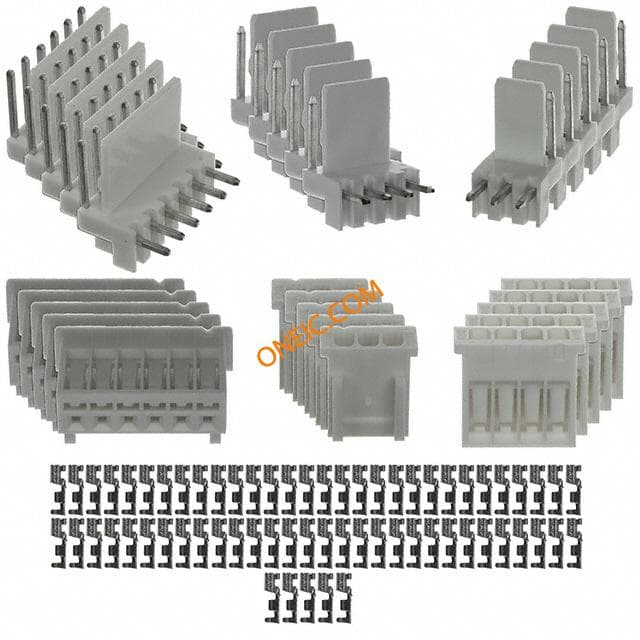

76650-0226
molex
COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM RA WTB Headers & Wire Housings MINILATCH KIT R/A HDR COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE ... Kit Description:Friction Lock Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:95 MINI-LATCH CONNECTOR KIT FRICTION LOCK RT ANGLE HEADER & RECEPT

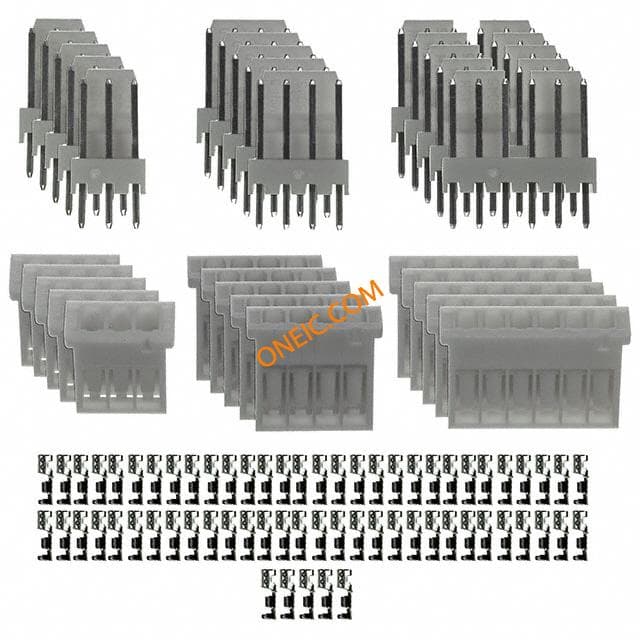

76650-0225
molex
COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM WTB Headers & Wire Housings MINILATCH KIT VERT HDR Kit Description:Friction Lock Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:95 MINI-LATCH CONNECTOR KIT FRICTION LOCK VERT HEADER & RECEPT

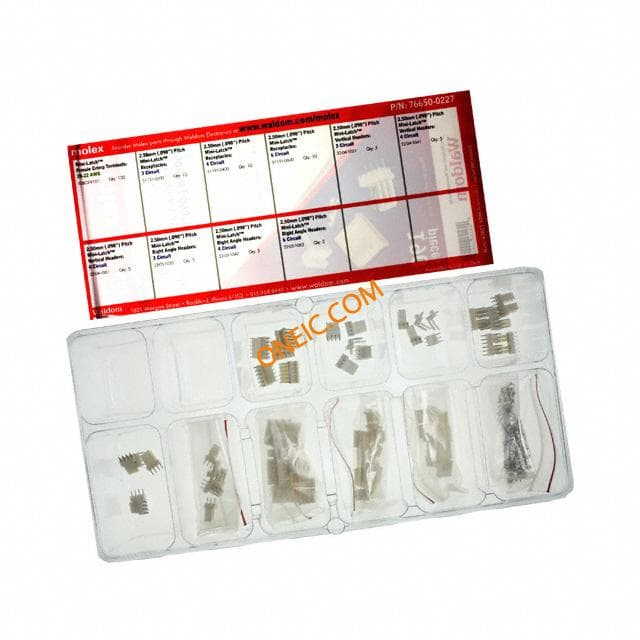

76650-0227
