点击放大查看

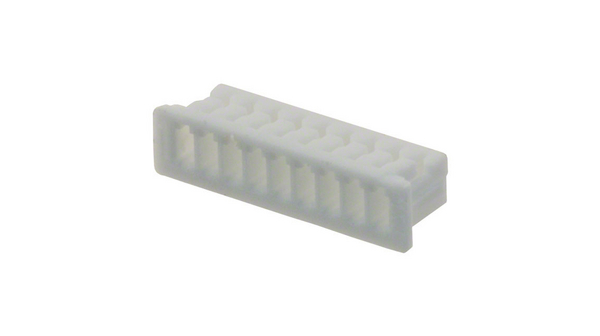

51021-0900
| 制造商 | |
| 描述 | 9 way receptacle housing,1.25mm pitch Headers & Wire Housings RECEPTACLE 9 POS Conn Housing F 9 POS 1.25mm Crimp ST Cable Mount Bag HOUSING, CRIMP, RECEPTACLE, 1.25MM, 9WAY Conn; Rect; Socket Hsg; 1.25 mm Pitch; ; 9 Cir; W-to-W; W-to-B; PicoBlade Crimp housing 1.25 mm Poles 9 PicoBlade, 51021-0900, Molex Molex PICOBLADE 系列 1.25mm 节距 9 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0510210900 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | :125V | 工作电压 | :125V |
| 介电强度 | :250V | 最大额定电流 | :1A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 深度 | 3.95mm | 间距 | 1.25mm |
| 宽度 | 3.2mm | 长度 | 13mm |
| 重量 | 0.008 | 安装类型 | Straight |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :GF Nylon UL94V-0 | 壳体材料 | PBT |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 9 | 位数 | :9 |
产品信息
| 连接器性别 | Female | 系列 | 51021 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | PicoBlade Wire-to-Board Connector, PicoBlade Wire-to-Wire Connector | ||
环境参数
| 工作温度 | :85°C | ||
