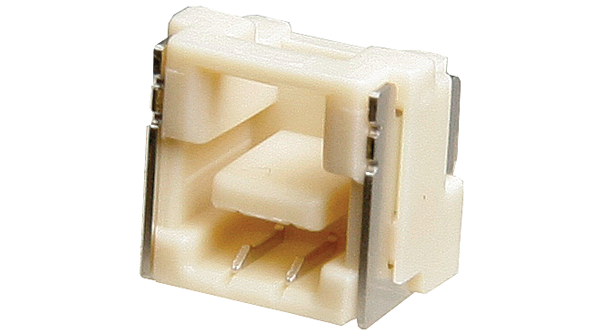

点击放大查看
502386-0270
| 制造商 | Molex, LLC |
| 描述 | Molex 1.25mm 2 Way 1 Row Right Angle PCB Socket Surface Mount Wire to Board Headers & Wire Housings 2P CLIKMATE RECPT RIGHT ANGLE TIN 1.25mm Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle, Single Row, Right Angle, 2 Circuits RECEPTACLE, 1.25MM, R/A, 2WAY PCB receptacle, 90° Pitch1.25 mm Poles 2 CLIK-Mate™, 502386-0270, Molex Molex CLIK-MATE 系列 2路 直角 1.25mm节距 表面贴装 印刷电路板插座, 线对板 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | CLIK-Mate | 产品类别 | Headers & Wire Housings |
| 工厂包装数量 | 1200 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - CLIK-Mate 502386 Series | 额定电压 | 50 V ac/dc |
| 接触电阻 | :20mohm | 击穿电压 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | :100Mohm |
机械参数
| 间距 | 1.25mm | 重量 | 0.00018 |
| 材料（通用） | :Polybutylene Terephthalate | 包装方式 | Reel |
| 端接方式 | Solder | 引脚间距 | :1.25mm |
| 安装类型 | Right Angle | 接触镀层 | :Tin |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 端接样式 | SMD |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :White |
| 触点数 | 2 | 接触件端接 | :Surface Mount Right Angle |
产品信息
| 类型 | Wire to Board | 连接器性别 | :Socket |
| 系列 | 502386 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - PCB | ||
环境参数
| 工作温度 | :85°C | ||
