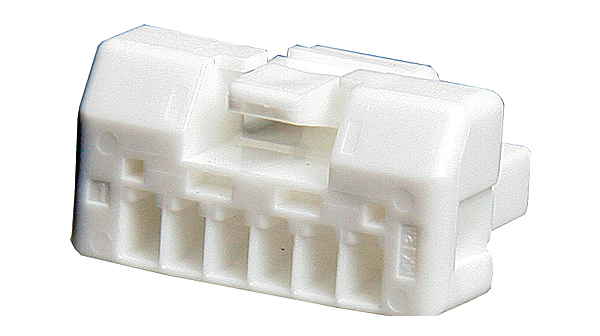

502380-0600
| 制造商 | Molex, LLC |
| 描述 | 6w s/r 1.25mm crimp housing Headers & Wire Housings 6P CLIKMATE PLUG POSITIVE LOCK 1.25mm Pitch CLIK-Mate™ Wire-to-Board Housing, Single Row, Positive Lock, 6 Circuits CRIMP HOUSING, 1.25MM, 6WAY Crimp housing Pitch1.25 mm Poles 6 CLIK-Mate™, 502380-0600, Molex Molex CLIK-MATE 系列 1.25mm 节距 6 路 直 公 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | CLIK-Mate | 产品类别 | Headers & Wire Housings |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - CLIK-Mate 502380 Series | 额定电压 | 50 V |
| 接触电阻 | :20mohm | 击穿电压 | :500V |
| 最大额定电流 | 1 A | 绝缘电阻 | :100Mohm |
| 连接器类型 - 电压输入 | Plug | ||
机械参数
| 深度 | 7.05mm | 间距 | 1.25mm |
| 宽度 | 5.45mm | 长度 | 10.6mm |
| 重量 | 0.000189 | 材料（通用） | :Polybutylene Terephthalate |
| 端接方式 | :Crimp | 引脚间距 | :1.25mm |
| 安装类型 | Straight | 接触镀层 | :- |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | PBT | 连接器颜色 | :White |
| 触点数 | 6 | 接触件端接 | :Crimp |
产品信息
| 类型 | Plug Housing | 连接器性别 | Male |
| 系列 | 502380 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 应用细节 | Signal, Wire-to-Board |
| 适用产品/相关产品 | CLIK-Mate Wire-to-Board Connector | ||
环境参数
| 工作温度 | :85°C | ||
