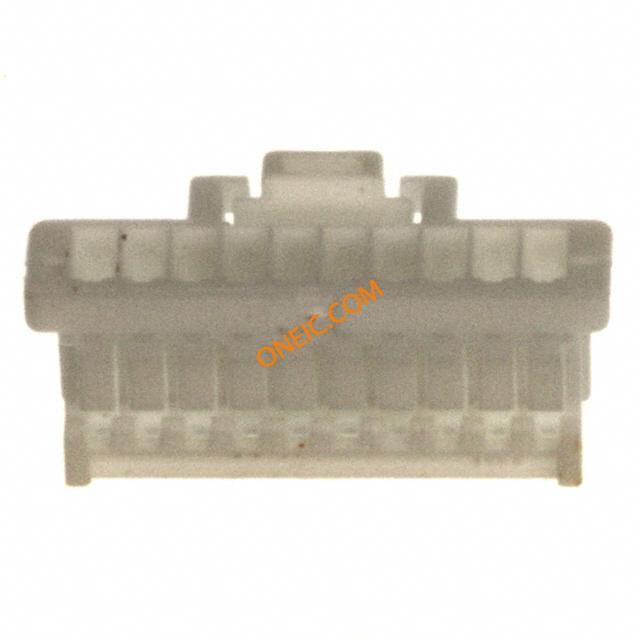

501330-1000
| 制造商 | |
| 描述 | Conn Housing RCP 10 POS 1mm Crimp ST Cable Mount Bag CONN RCPT 1MM VERT 10POS 10w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 10Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 10 Circuits HOUSING, 1.0MM, PICO-CLASP, 10WAY Crimp Housing for Pitch1 mm Poles 1 x 10 Pico-Clasp™, 501330-1000, Molex Molex PICO-CLASP 系列 1mm 节距 10 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Pico-Clasp | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
电气参数
| 量程（°/s） | :MOLEX - Pico-Clasp 501330 Series | 最大额定电流 | 1 A |
机械参数
| 颜色 | White | 深度 | 5.5mm |
| 间距 | 0.039" (1.00mm) | 宽度 | 4.76mm |
| 长度 | 11.7mm | 重量 | 0.05 |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 501330 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | Pico-Clasp Wire-to-Board Connector |
文档与媒体
相关型号

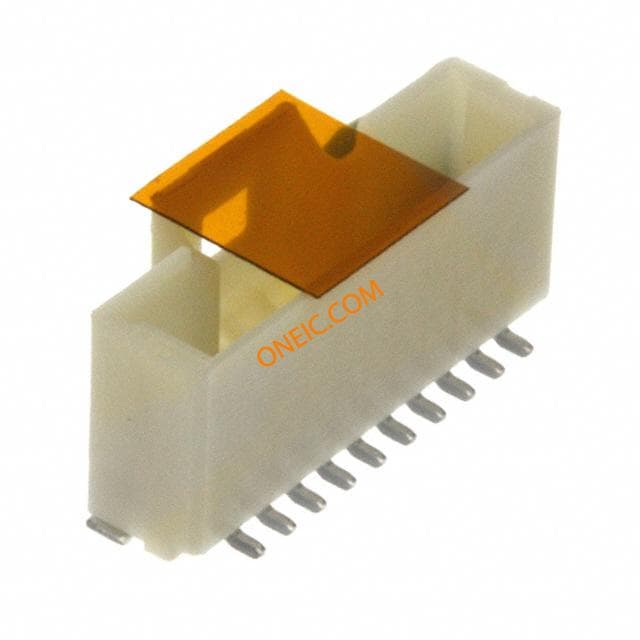

5013311007
molex
Conn Shrouded Header HDR 10 POS 1mm Solder ST SMD Embossed T/R CONN HEADER 1MM 10POS SMD TIN 1.0WtB1-RowStrWaferAssyEmbsTpPkg10Ckt Socket; wire-board; male; PIN:10; 1mm; SMT; PICO-CLASP; 50V; 1A
501334-0100
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 1.0 WtB Crimp Term 28-32 AWG Loose TERMINAL, PICO-CLASP, 28-32AWG CONTACT, FEMALE, 32-28AWG, CRIMP Crimp socket 1 A Female 32...28 AWG, 501334-0100, Molex Molex PICO-CLASP 系列 母 压接触点, 压接或压缩, 镀锡触点
5013340100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET CRIMP 28-32AWG 5013340100 1.0WtBCrimpRecTermLse Contact; female; 28÷32AWG; PICO-CLASP; tinned; crimped, on cable

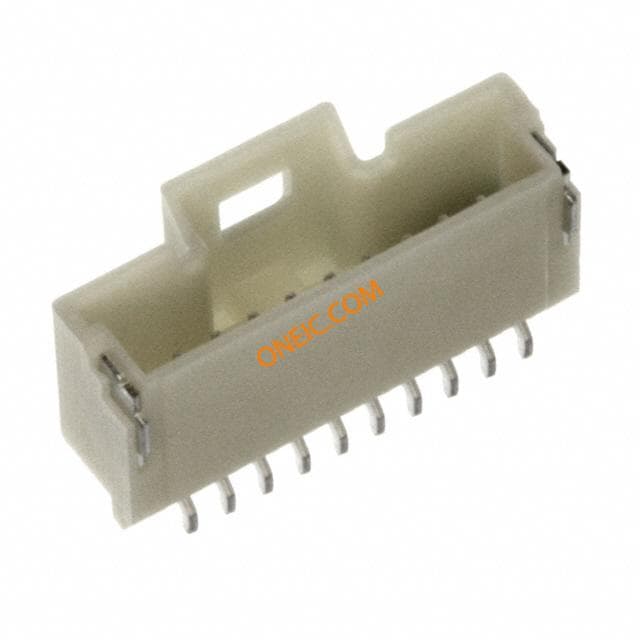

5015681007
