点击放大查看

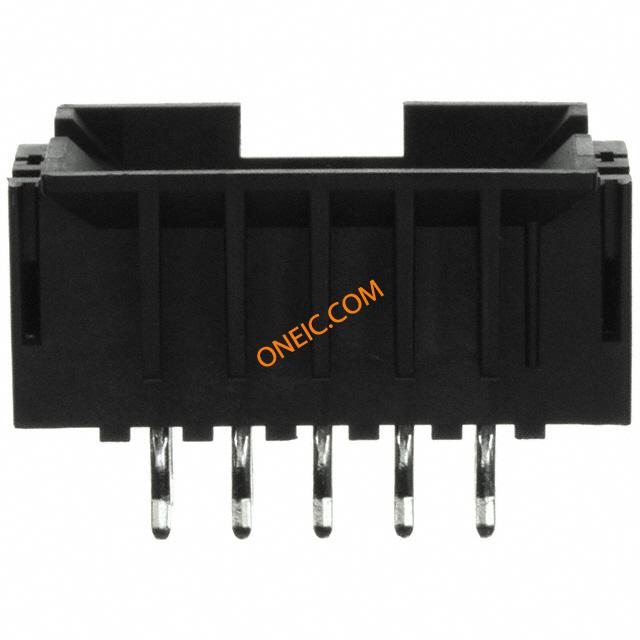

43879-0025
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 10 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 10POS 4.2MM DUAL TIN Headers & Wire Housings VERT MINIFIT CPI 10P dual row interface Conn Power HDR 10 POS 4.2mm Press Fit ST Thru-Hole 10 Terminal 1 Port Tray HEADER, MINI-FIT CPI, TIN, 10WAY MINI-FIT CPI HDR FOR .094PCB 10CKT TIN |
| 分类 |
商业参数
| 商标名 | Mini-Fit CPI | 零件号别名 | 0438790025 43879-0025-PB |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 量程（°/s） | :MOLEX - Mini-Fit CPI 43879 Series | 额定电压 | 600 V |
| 最大额定电流 | 6 A | ||
机械参数

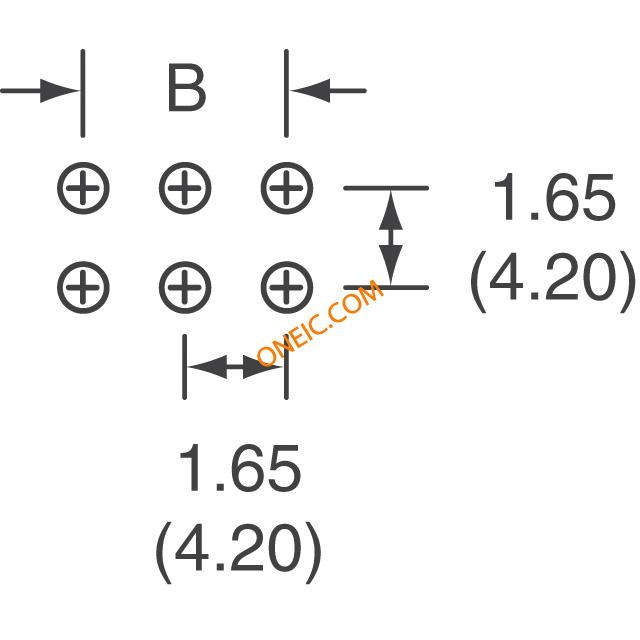

| 颜色 | Black | 间距 | 4.2 mm |
| 重量 | 0.002 | 包装方式 | Tray |

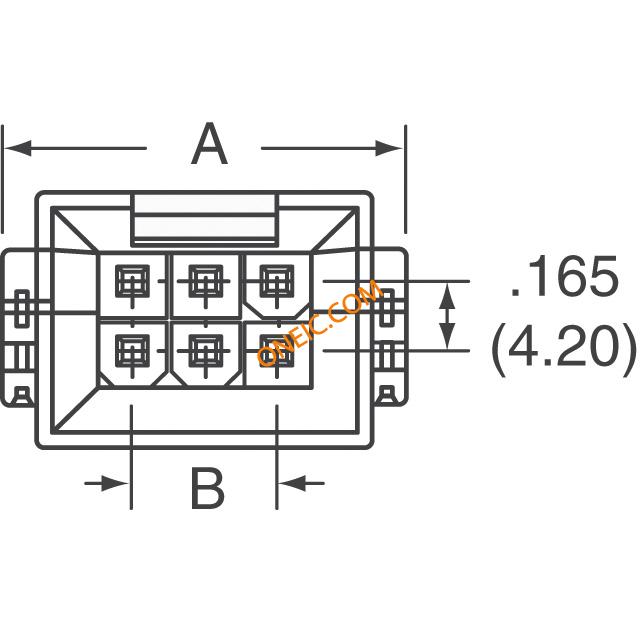

| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 10 |
| 接触件端接 | :Press Fit Vertical | 位数 | 10 |
| 接触镀层厚度 | 100µin (2.54µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 43879 | 产品子类型 | Headers |
| 电路数 | 10 | 加载位置数 | All |
