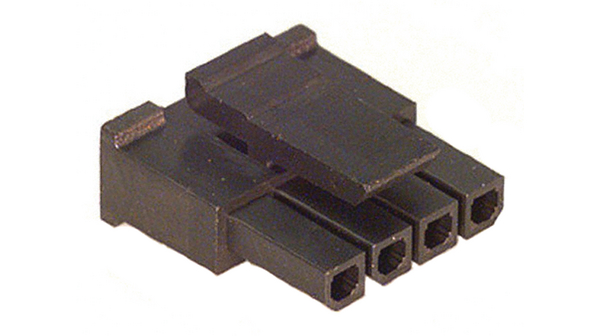

点击放大查看
43645-0400
| 制造商 | Molex, LLC |
| 描述 | 4 way single row receptacle,3mm pitch Headers & Wire Housings RECEPTACLE 4 POS SINGLE ROW Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Bag RECEPTACLE, IN-LINE, 4WAY 3.00 mm (.118in) Pitch Micro-Fit 3.0 Receptacle, Single Row Female contact housing single row Pitch3 mm Poles 1 x 4 Micro-Fit, 43645-0400, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0436450400 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :250V |
| 接触电阻 | :10Mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 5 A | ||
机械参数
| 深度 | 14mm | 间距 | 3mm |
| 长度 | 12.85mm | 重量 | 0.057 |
| 材料（通用） | :Polyester | 安装类型 | Straight |
| 安装样式 | Wire | 排数 | 1 |
| 壳体材料 | PBT | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 位数 | :4 | ||
产品信息
| 连接器性别 | Female | 系列 | 43645 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Micro-Fit 3.0 Receptacle | ||
