点击放大查看

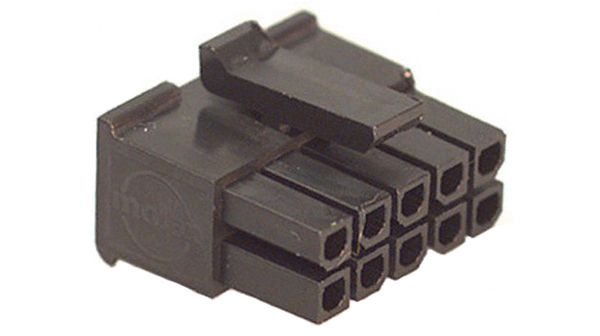

43025-1000

制造商	Molex, LLC
描述	10 way dual row receptacle,5A Headers & Wire Housings RECEPTACLE 10P DUAL ROW Conn Housing F 10 POS 3mm Crimp ST Cable Mount Bag RECEPTACLE, FREE, 10WAY Receptacle; 10; Dual; 0.118; Female; Polyester; Black; UL 94V-0 Female contact housing dual row Pitch3 mm Poles 2 x 5 Micro-Fit, 43025-1000, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 10 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Micro-Fit 3.0	零件号别名	0430251000
产品类别	Headers & Wire Housings	工厂包装数量	1500

合规参数

RoHS	RoHS Compliant	海关税号	85369010
材料阻燃等级	:UL94V-0

电气参数

额定电压	:250V	工作电压	:250V
接触电阻	:10mohm	介电强度	:1500V/m
最大额定电流	5 A

机械参数

深度	14mm	间距	3mm
宽度	11.56mm	长度	15.85mm
重量	0.002	材料（通用）	:Polyester
安装类型	Straight	安装样式	Wire
排数	2	壳体材料	PET
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	10	位数	:10

产品信息

连接器性别	Female	系列	43025
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - Housings
适用产品/相关产品	Micro-Fit 3.0 Receptacle

文档与媒体

PDF 文档

0430251000_CRIMP_HOUSINGS.pdf
