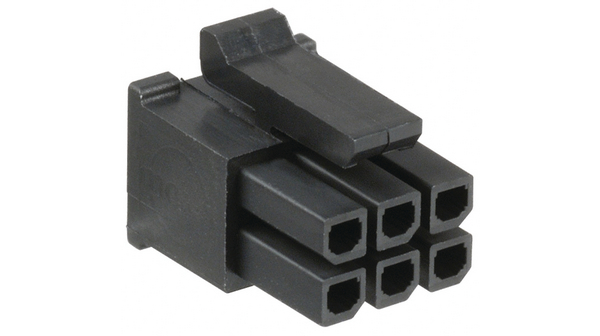

点击放大查看
43025-0600
| 制造商 | Molex, LLC |
| 描述 | 6 way dual row receptacle,5A Headers & Wire Housings RECEPTACLE 6P DUAL ROW Conn Housing F 6 POS 3mm Crimp ST Cable Mount Bag RECEPTACLE, 6WAY, CRIMP, FREE PLUG & SOCKET CONNECTOR, RCPT, 6POS, 3MM Receptacle; 6; Dual; 0.118; Female; Polyester; Black; UL 94V-0 Female contact housing dual row Pitch3 mm Poles 2 x 3 Micro-Fit, 43025-0600, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 6 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430250600 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | :Black | 深度 | 14mm |
| 间距 | 3mm | 宽度 | 11.56mm |
| 长度 | 9.85mm | 重量 | 0.072 |
| 材料（通用） | :Polyester | 基体材料 | :Polyester |
| 安装类型 | Straight | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | PET |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 位数 | :6 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | Female | 系列 | 43025 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Micro-Fit 3.0 Receptacle | ||
