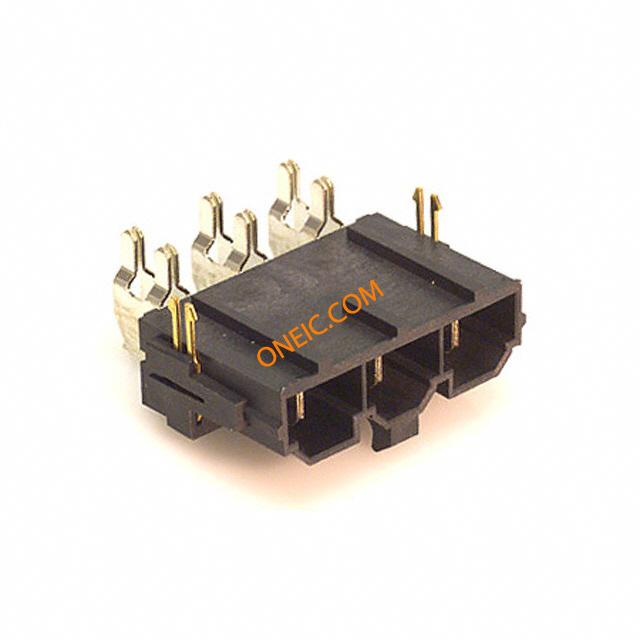

42820-3212
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 3 POS 10mm Solder RA Thru-Hole Tray CONN HEADER 3POS 10MM R/A TIN Molex 42820 Series 10mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 48A Conn Wire to Board HDR 3 POS 10mm Solder RA Thru-Hole Tube HEADER, 10MM, 3WAY Mini-Fit Sr. Right Angle Header (Tin Plated) 3 Circuits Molex MINI-FIT SR. 系列 10mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 48A |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :MOLEX - Mini-Fit Sr 42820 Series | 额定电压 | 600 V |
| 最大额定电流 | 48A | ||
机械参数
| 颜色 | Black | 间距 | 10 mm |
| 重量 | 0.959 | 包装方式 | Tray |
| 厚度 | 1.57 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 触头材料 | Brass Alloy | 触点数 | 3 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 3 |
| 接触镀层厚度 | 100µin (2.54µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 42820 | 产品特性 | Board Lock |
| CAD图纸 | 3D CAD Model | 电路数 | 3 |
| 加载位置数 | All | ||
